Reliable Spare Parts for Raymond Mill: Quality Replacements for Grinding Equipment
We provide a wide range of mills — including Raymond mill, trapezoidal mill, vertical mill, ultrafine mill, and ball mill, obtained ISO9001 international quality certification, EU CE certification, and Customs Union CU-TR certification. Suitable for processing minerals such as limestone, phosphate, quicklime, kaolin, talc, barite, bentonite, calcium carbonate, dolomite, coal, gypsum, clay, carbon black, slag, cement raw materials, cement clinker, and more.
The discharge range of these mills can be adjusted to meet specific processing needs, typically from 80-400 mesh, 600-3250 mesh, and can achieve the finest particle size of up to 6000 mesh(D50).
If you are looking for a reliable grinding solution to turn stone or minerals into fine powder, please feel free to contact our online customer service.
Introduction: Why Spare Parts Matter for Raymond Mill Performance
Raymond Mill has been a workhorse in the grinding industry for decades. It is the first-generation grinding mill produced by Liming Heavy Industry, known for its low investment costs, small footprint, and reliable operation. However, like any mechanical system, its long-term performance depends heavily on the quality of its spare parts. Using substandard or worn-out components leads to frequent breakdowns, reduced capacity, and inconsistent product fineness. That is why sourcing reliable spare parts for your Raymond Mill is not just a maintenance chore—it is a strategic decision that affects your entire production line.
Common Wear Parts in Raymond Mill and Their Impact

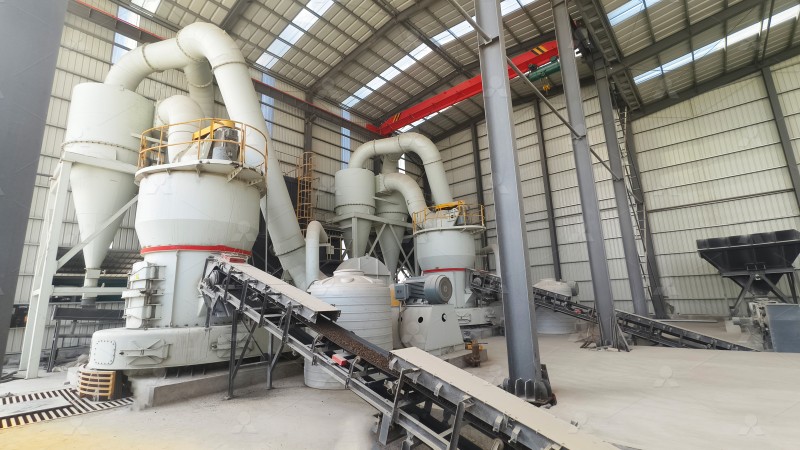

The heart of a Raymond Mill is the grinding chamber, where rollers oscillate outward to press against the grinding ring. Over time, these components experience significant wear. The most commonly replaced parts include grinding rollers, grinding rings, shovel blades, and the analyzer. When these parts degrade, you notice a drop in throughput, higher energy consumption, and poor powder fineness. For example, if the shovel blade wears out, material feed becomes uneven, causing the mill to vibrate and reducing its lifespan. Replacing these parts with genuine, high-quality alternatives ensures that your mill continues to operate at its designed capacity.

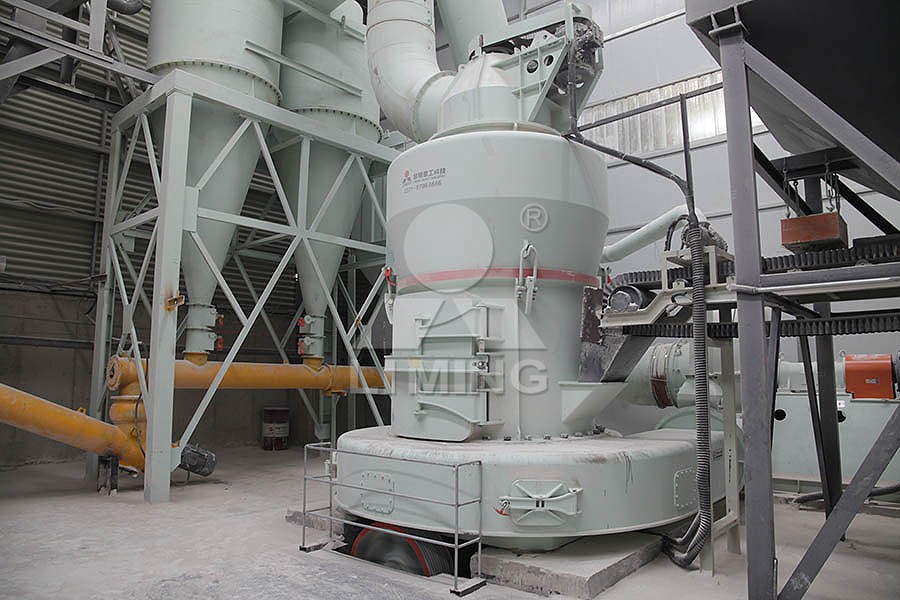

Liming Heavy Industry offers a full range of original spare parts for Raymond Mill. Our components are manufactured using advanced numerical control machine tools, which guarantees precision in every dimension. We recommend our Raymond Mill Grinding Roller Assembly for customers seeking to restore their mill’s original efficiency. This assembly is made from wear-resistant alloy steel, providing a service life 1.7 to 2.5 times longer than conventional parts.
How to Identify When Spare Parts Need Replacement
Knowing when to replace spare parts is crucial to avoid unplanned downtime. Key indicators include an increase in motor amperage draw, a decrease in capacity below 0.6 tph, or product fineness falling outside acceptable ranges. For Raymond Mill, which handles materials up to 25 mm input size and capacities of 0.6 to 5 tph, any significant deviation from these parameters signals wear. Additionally, listen for unusual noises from the grinding chamber—these often indicate roller or ring damage. Regular inspection every 500 operating hours is a good practice. Replace worn shovel blades immediately to prevent material buildup and maintain smooth operation.
For customers with higher production demands, we also suggest the MTW European Trapezium Grinding Mill as an upgrade path. However, if you choose to stay with your Raymond Mill, using Liming’s original spare parts ensures compatibility and performance. Our inventory includes everything from roller assemblies to sealing devices, all designed to fit seamlessly.
Benefits of Using Genuine Liming Spare Parts

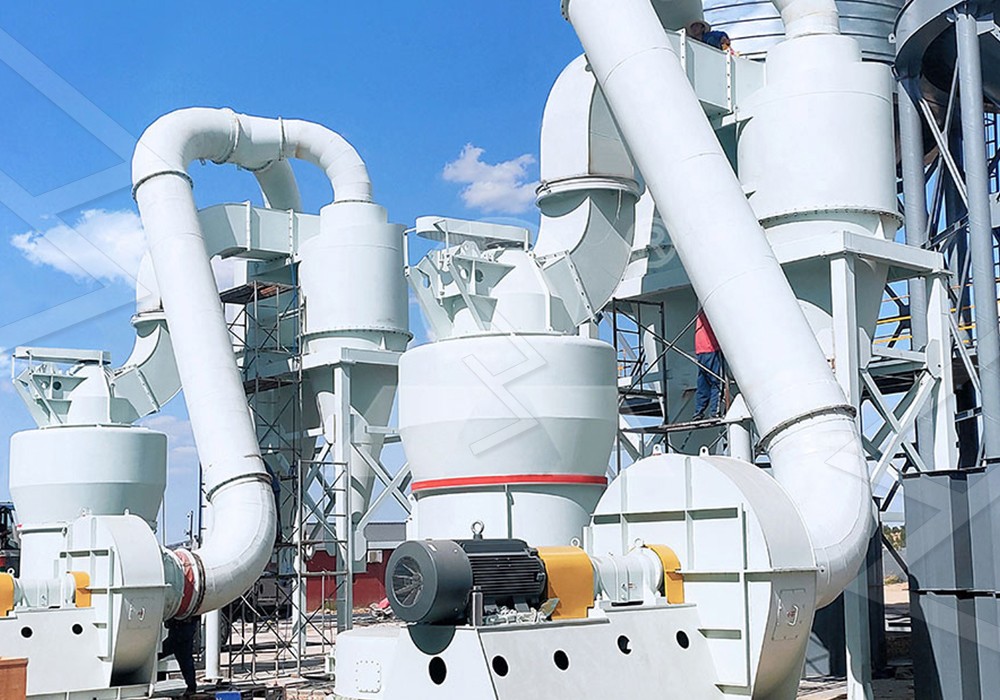

Original spare parts from Liming Heavy Industry offer several distinct advantages. First, they are produced on the same digitalized production lines as the original mill components. Steel plate cutting, bending, planing, and milling are all numerically controlled, resulting in high precision. Second, our parts undergo rigorous quality checks to ensure they meet the exact specifications required for Raymond Mill operation. Third, we maintain sufficient supply in our warehouses, so you never face long lead times. Our commitment to customer service means we provide technical support alongside every part purchase, helping you with installation and troubleshooting.
Using counterfeit or generic parts may save money upfront, but it often leads to higher costs in the long run. These parts wear faster, cause uneven grinding, and can even damage other components like the main shaft or reducer. Liming’s spare parts eliminate these risks. We take responsibility for every machine we produce, and our spare parts program reflects that commitment.
Extending the Life of Your Raymond Mill Through Proper Maintenance
Spare parts are only part of the equation. Proper maintenance practices significantly extend the life of your mill. For Raymond Mill, key maintenance tasks include lubricating the main shaft regularly, checking the tightness of all bolts, and cleaning the dust collector. The mill’s airflow system must remain sealed to maintain negative pressure; any leaks reduce efficiency and increase dust emission. Replace the grinding roller and ring as a set to maintain balanced operation. Also, inspect the analyzer’s blades for wear, as they control product fineness.

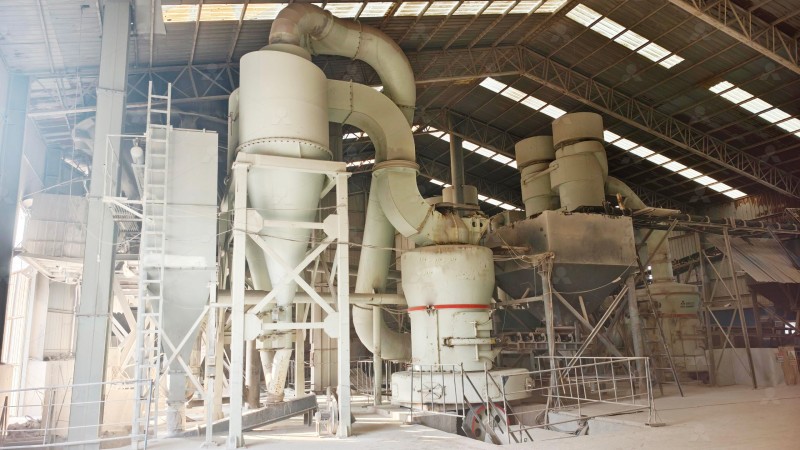

Liming’s pulse dust collector technology, which is standard on our MW Ultrafine Grinding Mill, can also be retrofitted to older Raymond Mill systems. This upgrade makes your operation more eco-friendly by eliminating dust pollution. When combined with quality spare parts, such retrofits can breathe new life into aging equipment. For customers processing materials like limestone, calcite, or dolomite, maintaining your Raymond Mill with genuine parts ensures consistent results and lower total cost of ownership.
Conclusion: Invest in Quality, Ensure Reliability
spare parts for Raymond Mill are not an afterthought—they are essential to your operation’s success. By choosing Liming Heavy Industry’s original components, you invest in reliability, efficiency, and peace of mind. Our products, from grinding rollers to complete mill assemblies, are backed by decades of engineering expertise. Whether you operate a single Raymond Mill or a fleet, our spare parts supply chain is ready to support you. Do not let worn parts compromise your production. Contact us today to order the replacements you need, and keep your grinding operation running smoothly.
Frequently Asked Questions (FAQ)
- How often should I replace the grinding roller and ring in my Raymond Mill?
In typical applications processing limestone or calcite, the grinding roller and ring should be inspected every 500 to 800 hours of operation. Replacement is usually needed after 1500 to 2500 hours, depending on material hardness and moisture content. Regular monitoring of capacity and fineness will help you determine the exact timing. - Can I use spare parts from other brands on my Liming Raymond Mill?
While some generic parts may fit physically, we strongly recommend using Liming original spare parts. Non-genuine parts often have dimensional tolerances that cause uneven wear, vibration, and reduced efficiency. Only original parts guarantee the performance and longevity designed into your mill. - What is the typical lead time for ordering Raymond Mill spare parts from Liming?
For commonly worn items like grinding rollers, rings, and shovel blades, our lead time is typically 7 to 15 working days. We maintain a sufficient inventory of these parts to support most orders without delay. Custom or less common parts may require additional time. - How do I know if my Raymond Mill’s analyzer needs replacement?
If you notice a decline in product fineness or an inability to adjust the fineness within the desired range (typically 80 to 325 mesh), the analyzer blades may be worn. Also, increased vibration during operation can indicate an imbalanced analyzer. Inspection during routine maintenance is the best way to catch this early. - Does Liming provide installation support for spare parts?
Yes. Liming offers technical services for all our products. When you purchase spare parts, we can provide installation guidance via phone, video call, or on-site support depending on your location and needs. Our goal is to ensure your mill operates worry-free after every replacement. - What is the warranty on Liming Raymond Mill spare parts?
Our original spare parts come with a standard warranty that covers manufacturing defects. The warranty period varies by component; for example, grinding rollers and rings typically carry a 12-month warranty from the date of purchase. Contact our sales team for specific details on the part you need. - Can I upgrade my Raymond Mill with parts from the MW Ultrafine Grinding Mill?
Direct compatibility is limited due to design differences. However, components like the pulse dust collector and some sealing systems can be adapted. For a significant upgrade in capacity and fineness, we recommend considering the MW Ultrafine Grinding Mill itself, which offers 0.5-25 tph capacity and fineness down to 2500 mesh.
