Steadman Type Vertical Shaft Impact Mills: Working Principles and Industrial Applications

Vertical Shaft Impact (VSI) mills, particularly the Steadman type, represent a cornerstone in modern grinding technology, offering unparalleled efficiency in material size reduction. These mills leverage centrifugal force and high-speed impact to pulverize materials, making them indispensable in industries ranging from mining to pharmaceuticals.

Working Principles

Steadman-type VSI mills operate on a straightforward yet highly effective principle. The motor drives the main shaft, which rotates at high speeds, propelling materials outward against a stationary anvil or rock shelf. The impact between the rapidly moving particles and the anvil fractures the material into finer particles. Key components include:

  • Rotor: The rotating assembly that accelerates materials.
  • Anvil Ring: A stationary surface where impact occurs.
  • Crushing Chamber: Designed to optimize particle-on-particle collisions.

Diagram of Steadman-type VSI mill showing rotor and crushing chamber

This mechanism ensures minimal energy loss and maximizes output fineness, with adjustable settings to control particle size distribution.

Industrial Applications

Steadman VSI mills excel in processing abrasive and non-abrasive materials alike, including:

  • Mining: Grinding ores like limestone, dolomite, and barite.
  • Construction: Producing high-quality aggregates for concrete.
  • Chemical Industry: Manufacturing ultra-fine powders for paints and coatings.

For applications requiring ultra-fine powders (325–2500 meshes), our MW Ultrafine Grinding Mill is an ideal companion. With a capacity of 0.5–25 tph and advanced German powder-separation technology, it ensures higher yields and lower energy consumption compared to conventional mills.

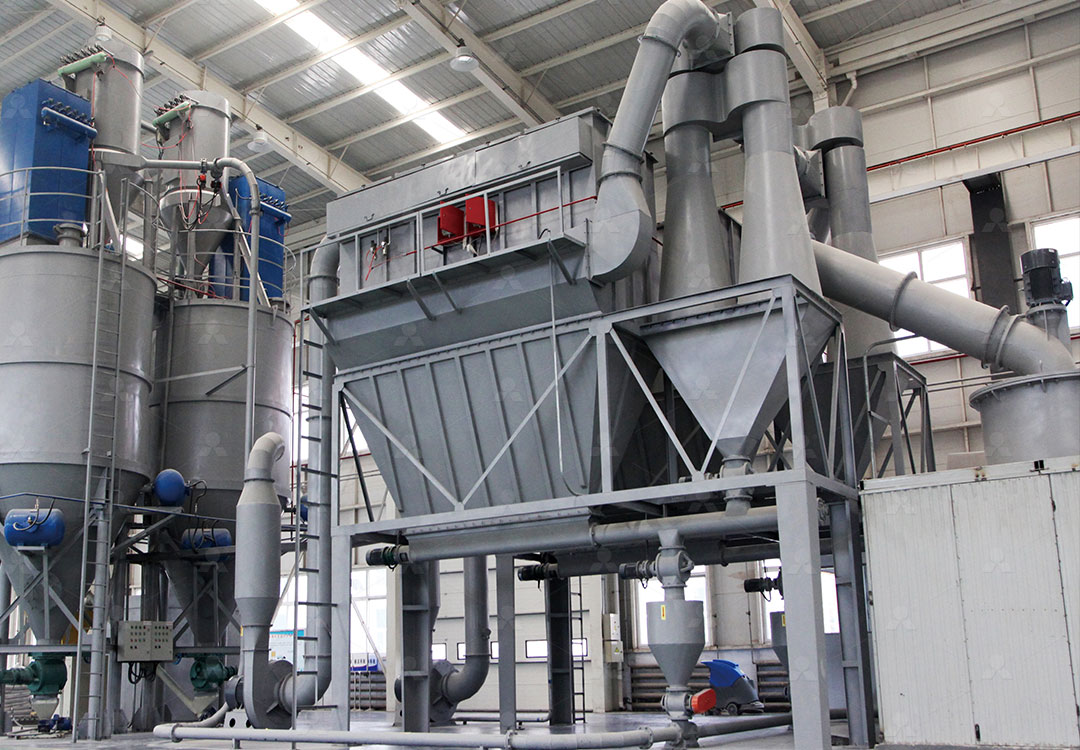

MW Ultrafine Grinding Mill in operation

Advantages Over Traditional Mills

Steadman VSI mills offer distinct benefits:

  • Energy Efficiency: 30–50% lower energy use than ball mills.
  • Compact Design: 50% smaller footprint.
  • Eco-Friendly: Integrated pulse dust collectors reduce emissions.

For larger-scale operations, our LUM Ultrafine Vertical Grinding Mill (5–18 tph) combines Taiwanese roller technology with German precision, ideal for superfine dry powders in industries like ceramics and pharmaceuticals.

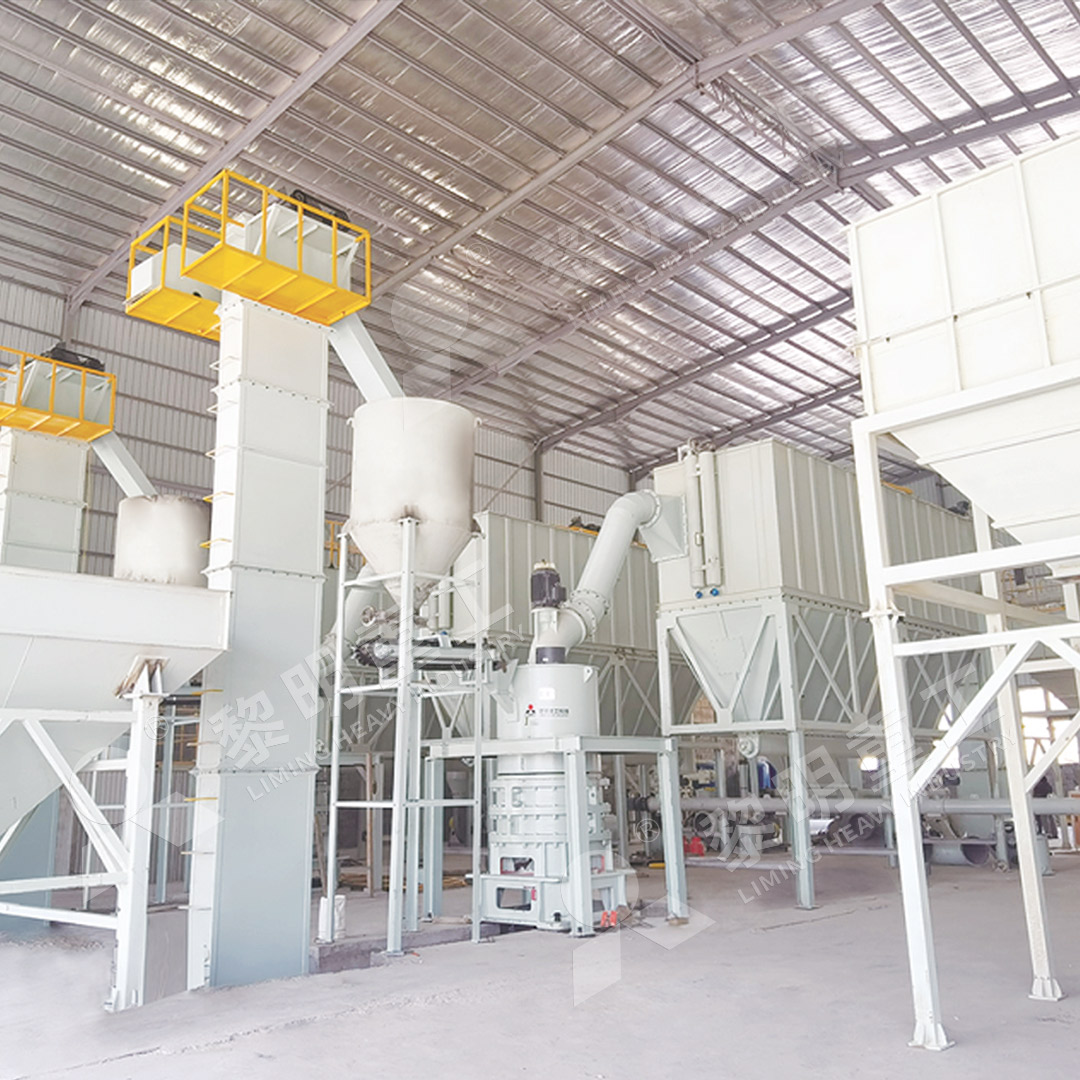

LUM Ultrafine Vertical Grinding Mill with digital control panel

Conclusion

Steadman-type VSI mills redefine grinding efficiency, blending robust construction with cutting-edge technology. Whether paired with our MW or LUM mills for ultra-fine applications, they deliver consistent performance across diverse industries. Explore LIMING’s solutions to elevate your grinding processes today.
