Small Raymond Mill for Laboratory Use
Small Raymond Mill for Laboratory Use
In the realm of material testing and research, the demand for reliable, small-scale grinding equipment is paramount. Laboratories across various industries—from mining and geology to pharmaceuticals and advanced materials science—require mills that can produce consistent, fine powders from small sample quantities. The traditional Raymond Mill design, known for its durability and efficiency in industrial settings, has been adapted to meet these specialized needs.
Laboratory-scale Raymond Mills are engineered to handle feed sizes typically under 25 mm, with capacities ranging from a few kilograms to several dozen kilograms per hour. This makes them ideal for processing limited batches of materials like limestone, calcite, barite, or specialty chemicals. The core principle remains the same as their larger counterparts: materials are fed into a grinding chamber where rotating rollers compress and crush them against a stationary ring. The resulting powder is then air-classified to achieve the desired fineness.
Key Considerations for Lab Applications
When selecting a mill for laboratory use, several factors take precedence over raw throughput. Precision, repeatability, ease of cleaning, and minimal cross-contamination are critical. A well-designed lab mill should allow for quick adjustment of grinding parameters to explore different product fineness levels, often between 80 to 400 mesh or finer. The ability to easily disassemble key components for sanitization or sample recovery is a significant advantage in R&D environments.
Furthermore, modern laboratory mills incorporate features to reduce their operational footprint and environmental impact. Efficient dust collection systems are integrated to maintain a clean lab environment, and noise reduction technologies ensure operator comfort during extended testing periods.
Beyond the Standard Lab Mill
While the classic Raymond Mill design serves many lab purposes excellently, certain advanced research applications demand even greater fineness, efficiency, or specialized grinding actions. For projects requiring ultra-fine powders or dealing with heat-sensitive materials, our MW Ultrafine Grinding Mill presents a superior alternative.

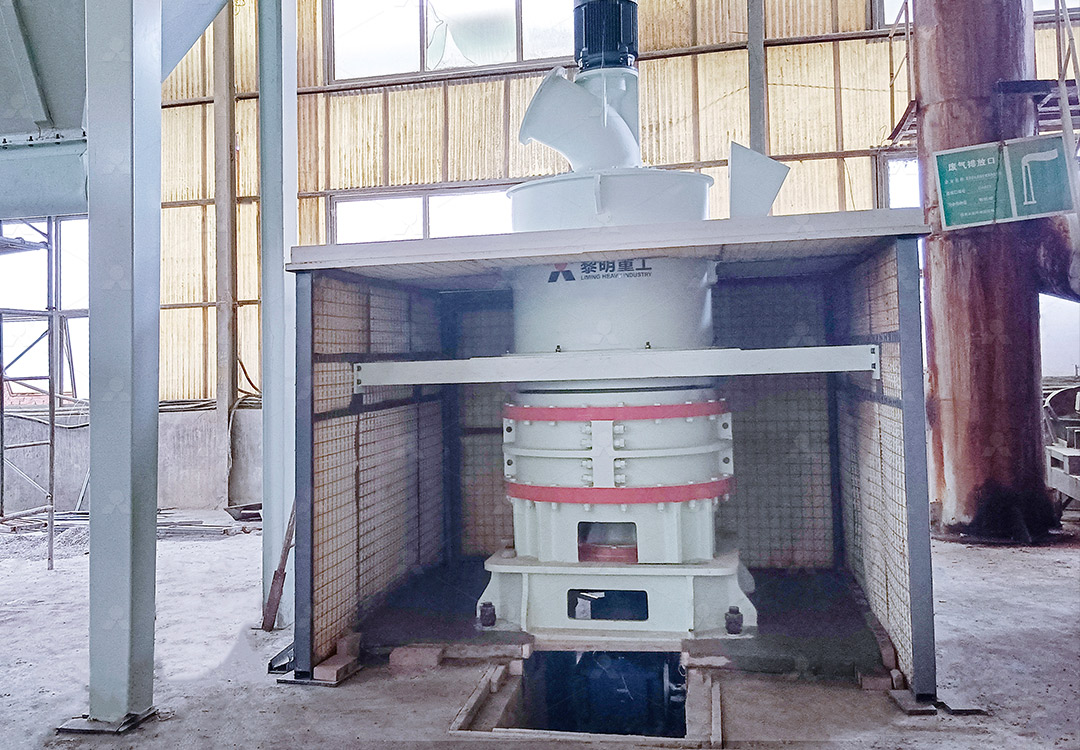

The MW Series is engineered for customers who need to make ultra-fine powder, achieving an adjustable fineness between 325 and 2500 meshes. It is particularly suited for processing materials like limestone, calcite, dolomite, talc, and various chemicals for industries such as paint, cosmetics, and medicine. A key feature for lab reliability is its design without rolling bearings or screws in the grinding chamber, eliminating common failure points and concerns about damage from loose components. Its efficient pulse dust collector and muffler also make it an exceptionally clean and quiet option for any research facility.
For labs focused on vertical grinding methodologies or requiring integrated drying and grinding, the LUM Ultrafine Vertical Grinding Mill is another standout choice. It combines advanced grinding roller technology with German powder separating technology, offering exceptional control over product fineness and quality. Its reversible structure is a significant boon for maintenance, allowing grinding rollers to be easily moved out of the body for inspection, which minimizes downtime—a valuable trait in a fast-paced lab.
Making the Right Choice for Your Lab
The optimal mill for your laboratory depends heavily on the specific materials you work with, the target particle size distribution, and the required throughput for your experiments. Engaging with technical experts to discuss your application’s nuances is the most reliable path to selecting the right equipment.
Frequently Asked Questions (FAQ)
What is the typical feed size for a laboratory Raymond Mill?
Most small Raymond Mills for lab use are designed to handle feed sizes of less than 25 mm. It’s crucial to pre-crush larger chunks to ensure efficient operation and prevent damage.
Can laboratory mills achieve ultra-fine grinding (below 10μm)?
While traditional lab Raymond Mills are excellent for fine grinding, achieving consistent ultra-fine results below 10μm often requires specialized mills like the MW Ultrafine Grinding Mill, which is capable of producing powders with a fineness of d97≤5μm.
How important is dust control in a laboratory grinding setup?
Extremely important. Proper dust collection is vital for operator safety, sample integrity, and maintaining a clean laboratory environment. Modern mills like the MW Series come equipped with efficient pulse dust collectors for this purpose.
What materials are commonly processed in laboratory mills?
Common materials include non-metallic minerals like limestone, calcite, dolomite, gypsum, barite, and talc, as well as various chemicals, coal, and custom synthetic materials for R&D.
Is training required to operate a laboratory mill?
Yes. While designed for usability, proper training on operation, cleaning, and routine maintenance is essential for safety, achieving consistent results, and maximizing the equipment’s lifespan.
