Optimizing Coal Grinding Safety: The Role of Water Spray Systems in Vertical Roller Mills

In the demanding environment of coal processing, safety is not just a priority—it’s a prerequisite for operational continuity. Vertical Roller Mills (VRMs) are at the heart of pulverized coal production, but the very process that makes them efficient—grinding dry, combustible material—also introduces significant fire and explosion risks. A critical, yet sometimes overlooked, component in mitigating these hazards is the integration of a robust and intelligently designed water spray system.

The Combustion Triangle in Coal Grinding

To understand the necessity of water spray systems, one must first recall the classic fire triangle: fuel, heat, and oxygen. Within a VRM, all three elements are present in abundance. Pulverized coal (fuel) is suspended in a stream of air (oxygen), and the grinding process itself generates considerable heat through friction and mechanical action. The primary goal of safety systems is to disrupt this dangerous combination before an incident can occur. Water spray systems act on the ‘heat’ element, providing rapid cooling to prevent the ignition of coal dust.

Beyond Fire Suppression: Proactive Temperature Control

While emergency firefighting is a crucial function, the most effective water spray systems operate proactively. They are designed to maintain mill outlet temperatures within a safe operating window, typically well below the ignition point of the specific coal being processed. By injecting a fine, atomized mist of water directly into the grinding zone, these systems absorb excess heat, effectively quenching potential ignition sources before they can escalate. This controlled cooling also helps protect the mill’s internal components from thermal stress, contributing to longer equipment life and reduced maintenance.

Integrating Safety with Grinding Efficiency

The challenge lies in adding moisture without compromising the grinding efficiency or the quality of the final product. This is where precision engineering becomes paramount. Modern systems use sophisticated nozzles that produce an ultra-fine spray, ensuring instantaneous evaporation and heat absorption without creating a slurry or causing material buildup. The system must be responsive, with flow rates automatically adjusted based on real-time temperature sensors at the mill outlet.

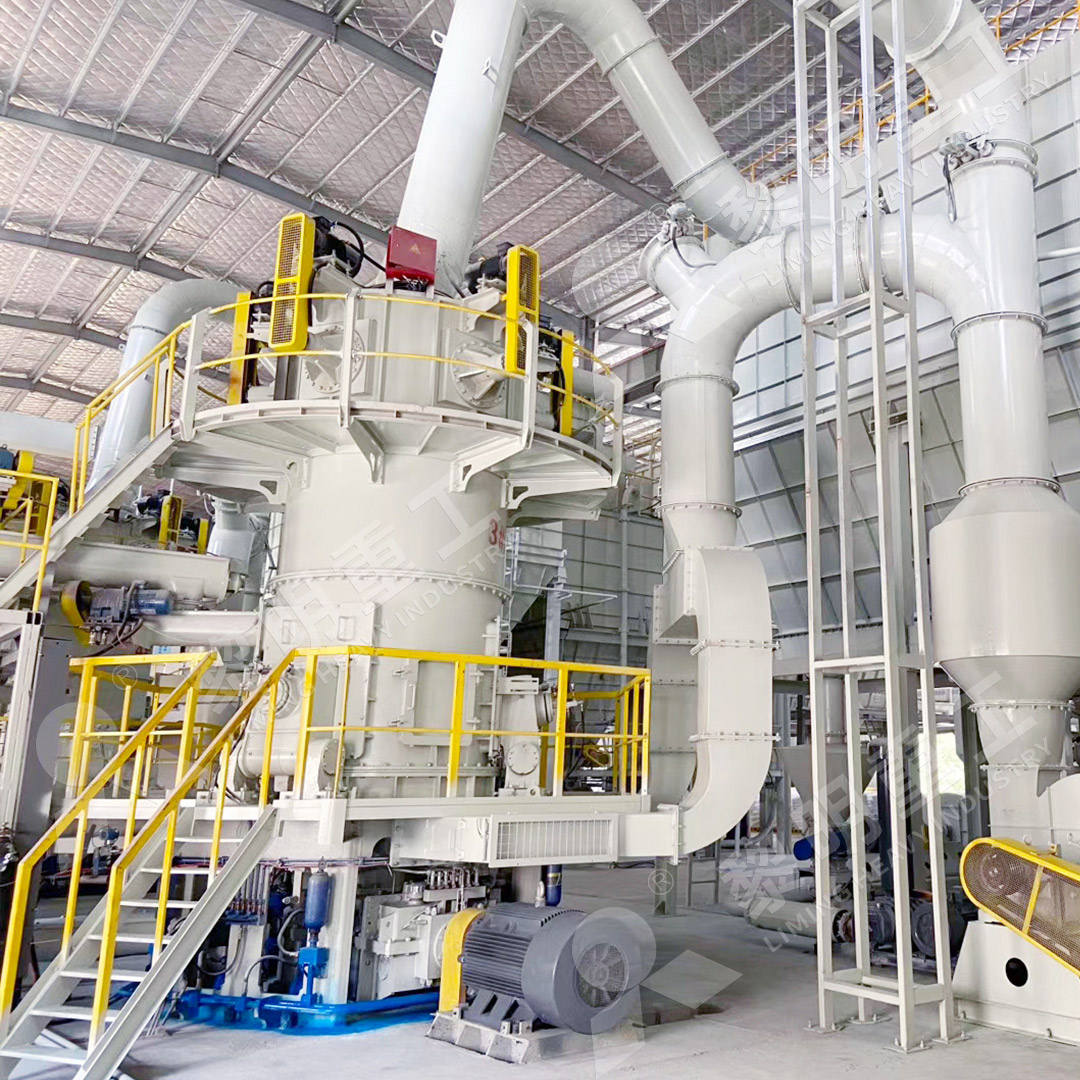

For operations seeking to enhance both safety and performance, selecting the right mill is foundational. Our LM Vertical Coal Mill is engineered with integrated safety as a core principle. Its design allows for stable material-bed grinding, which inherently generates less erratic temperature spikes. Furthermore, its structure readily accommodates the seamless integration of auxiliary safety systems like water sprays. With a capacity range of 5-100 T/H and the ability to handle feed sizes up to 50mm, it provides a stable and secure platform for high-volume coal preparation.

A Multi-Layered Safety Approach

It is vital to recognize that a water spray system is one layer in a comprehensive safety strategy. It works in concert with other critical measures, including:

• Inerting Systems: Using inert gases like nitrogen to reduce oxygen concentration in the mill.
• Explosion Venting: Safely directing the force of a potential explosion away from personnel and equipment.
• Advanced Monitoring: Continuous monitoring of CO levels, temperature, and pressure for early detection of smoldering coal.

For finer applications requiring utmost stability, our MW Ultrafine Grinding Mill offers distinct advantages. Its design features “No Rolling Bearing & Screw in Grinding Chamber”, eliminating potential ignition points caused by mechanical failure. This, combined with its efficient pulse dust collector, creates a cleaner, cooler, and inherently safer grinding environment for materials like petroleum coal, with a capacity of 0.5-25 tph.

Frequently Asked Questions (FAQ)

How does water injection affect the calorific value of the coal?

The small amount of water injected is calculated to evaporate completely using the excess heat in the mill. This results in a slight increase in the humidity of the primary air but has a negligible impact on the overall calorific value of the coal fuel. The primary benefit is the prevention of a catastrophic loss of fuel and equipment.

Can a water spray system be retrofitted to an existing VRM?

Yes, most existing vertical roller mills can be retrofitted with a water spray system. However, it requires careful engineering to ensure proper nozzle placement, water quality (to prevent clogging), and integration with the mill’s control logic. A consultation with our technical team is recommended to assess feasibility.

What is the key difference between a water spray for temperature control and a deluge system for fire suppression?

A temperature control spray system is a continuous or semi-continuous system that uses a fine, atomized mist to manage operational heat. A deluge system is an emergency system that activates only in the event of a detected fire, releasing a large volume of water to extinguish flames. They serve different but complementary purposes.

Why choose an LM Vertical Coal Mill for new safety-critical installations?

The LM Vertical Coal Mill is designed from the ground up for safe and efficient coal grinding. Features like its hydraulic system for easy roller maintenance, limit devices to prevent roller-to-table contact, and a stable grinding bed make it easier to maintain safe operating conditions. Its compact, negative-pressure design also minimizes dust escape, contributing to a safer plant environment.
