Oil Shale Vertical Mill for Efficient Grinding and Processing
Unlocking the Potential of Oil Shale Through Advanced Grinding Technology
The processing of oil shale presents unique challenges that demand specialized grinding equipment. Traditional milling methods often fall short when dealing with this complex sedimentary rock that contains significant amounts of kerogen. The key to efficient oil shale processing lies in achieving the optimal particle size distribution while maintaining energy efficiency and operational reliability.
Oil shale requires precise grinding to liberate the kerogen while minimizing energy consumption. The ideal grinding solution must handle varying feed sizes and compositions while producing consistent output quality. This is where vertical grinding technology demonstrates significant advantages over conventional approaches.

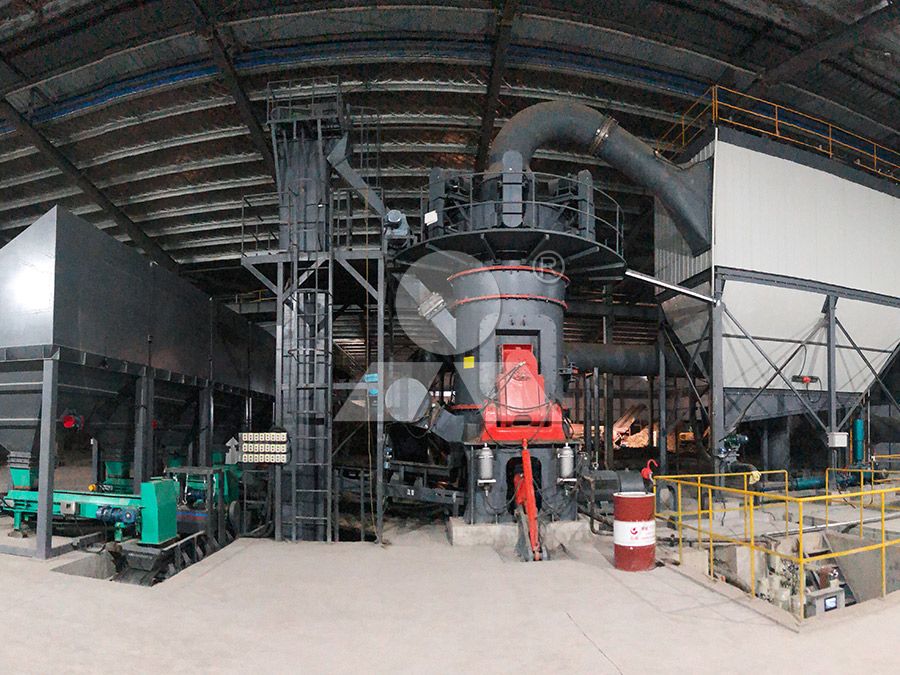

The Vertical Mill Advantage for Oil Shale Processing
Vertical mills have revolutionized mineral processing by integrating multiple operations into a single, compact unit. For oil shale applications, these systems offer:
- Integrated drying and grinding capabilities
- Superior energy efficiency compared to ball mills
- Compact footprint reducing installation costs
- Precise particle size control
- Lower operating and maintenance costs
When processing oil shale, the ability to simultaneously dry and grind the material is particularly valuable. Moisture content can significantly impact processing efficiency, and integrated systems eliminate the need for separate drying equipment.

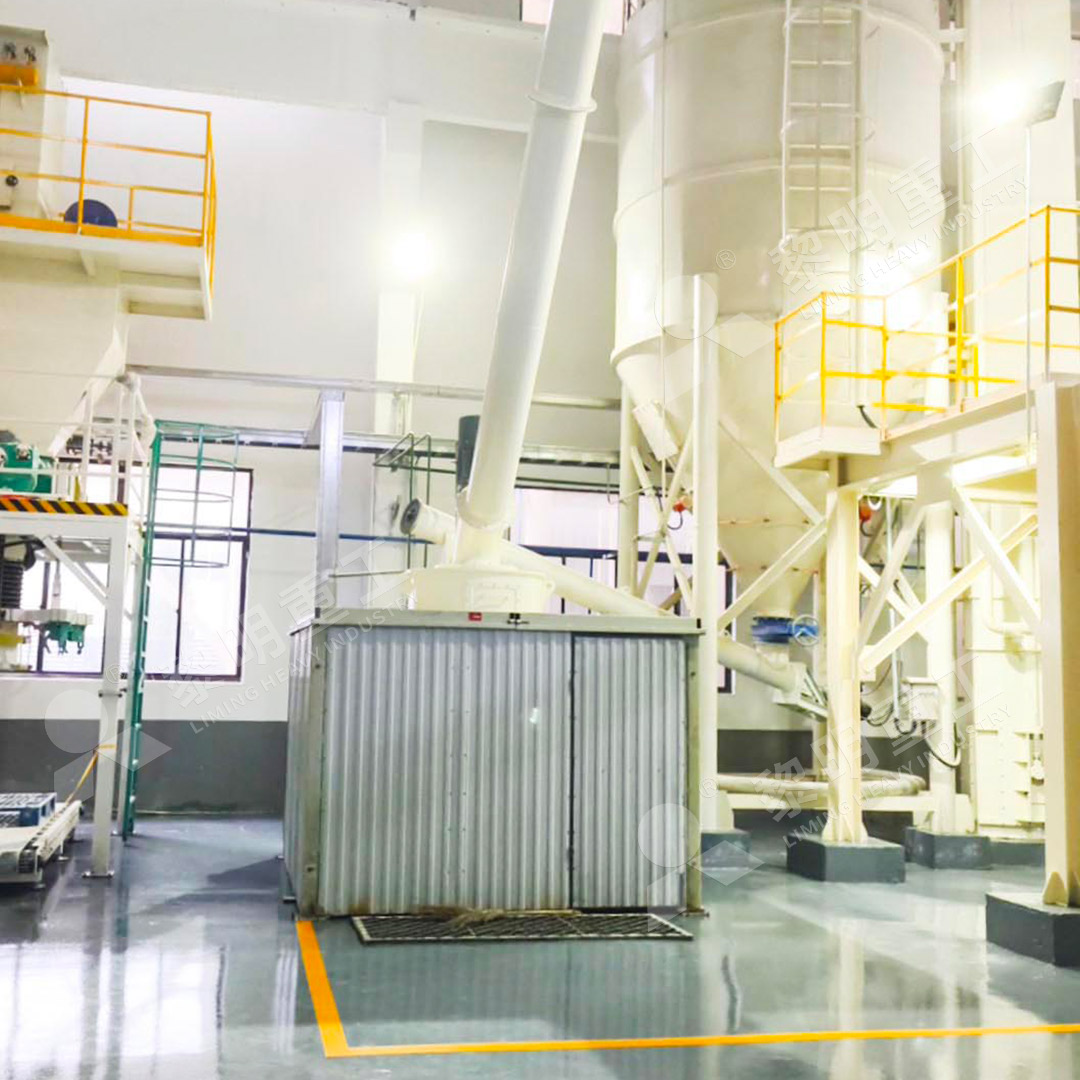

Recommended Solution: MW Ultrafine Grinding Mill
For operations requiring ultra-fine powder production from oil shale, our MW Ultrafine Grinding Mill represents the pinnacle of grinding technology. This advanced system is specifically engineered for customers who need to produce ultra-fine powder with exceptional efficiency.
The MW Ultrafine Grinding Mill features a revolutionary design that delivers 40% higher production capacity compared to jet grinding mills and stirred grinding mills at the same fineness and power levels. Meanwhile, system energy consumption is reduced to just 30% of what jet grinding mills require. This exceptional efficiency makes it ideal for large-scale oil shale processing operations.
Key technical specifications include:
- Input Size: 0-20 mm
- Capacity: 0.5-25 tph
- Adjustable Fineness: 325-2500 meshes
- Special Features: No rolling bearings or screws in grinding chamber, external lubrication system
Advanced Features for Optimal Oil Shale Processing
The MW Ultrafine Grinding Mill incorporates several proprietary technologies that make it particularly suitable for oil shale applications. The cage-type powder selector, developed using German technology, ensures precise powder separation with screening rates achieving d97≤5μm in a single pass. This precision is crucial for oil shale processing where particle size distribution directly impacts downstream extraction efficiency.
Another significant advantage is the mill’s environmental performance. The integrated efficient pulse dust collector ensures no dust pollution during operation, while the silencer and noise elimination room reduce operational noise to environmentally acceptable levels. The entire production process complies with national environmental protection standards.
Alternative Solution: LUM Ultrafine Vertical Grinding Mill
For operations with different requirements, our LUM Ultrafine Vertical Grinding Mill offers another excellent option. This mill combines the latest Taiwan grinding roller technology with German powder separating technology, creating a system that excels in ultrafine powder grinding, grading, and transporting.
With an input size of 0-10 mm and capacity ranging from 5-18 tph, the LUM mill features double position-limiting technology for stable operation and a reversible structure that simplifies maintenance. The multi-head powder separating technology reduces energy consumption by 30%-50% compared to conventional grinding mills.
Implementation Considerations
When integrating vertical mills into oil shale processing operations, several factors require careful consideration. Feed preparation, moisture content management, and downstream processing requirements all influence mill selection and configuration. Our technical team provides comprehensive support from initial assessment through commissioning and ongoing operation.
The digital processing capabilities of our grinding mills ensure high precision manufacturing of all components, particularly core parts. This manufacturing excellence, combined with our comprehensive spare parts supply and technical support, guarantees worry-free operation throughout the equipment lifecycle.
Frequently Asked Questions
What makes vertical mills particularly suitable for oil shale processing?
Vertical mills offer integrated drying and grinding capabilities, superior energy efficiency, and precise particle size control – all critical factors for efficient oil shale processing. Their compact design also reduces installation costs and space requirements.
How does the MW Ultrafine Grinding Mill achieve such high energy efficiency?
The MW mill features newly designed grinding curves of the grinding roller and grinding ring that significantly enhance grinding efficiency. The system consumes only 30% of the energy required by jet grinding mills while delivering 40% higher production capacity.
What particle size range can the MW Ultrafine Grinding Mill achieve?
The MW mill can produce powders ranging from 325 to 2500 meshes, with screening rates achieving d97≤5μm in a single pass. This fine control is essential for optimal oil shale processing.
How does the maintenance requirement compare to traditional grinding mills?
The MW mill’s design eliminates rolling bearings and screws from the grinding chamber, significantly reducing maintenance needs. The external lubrication system allows for lubrication without shutdown, enabling continuous 24-hour operation.
What environmental benefits do these grinding systems offer?
Our vertical mills feature efficient pulse dust collectors that prevent dust pollution, along with silencers and noise elimination rooms that reduce operational noise. The entire system operates in compliance with national environmental protection standards.
