LM170 Vertical Roller Mill for Quarry Applications

Unlocking Efficiency in Modern Quarry Operations

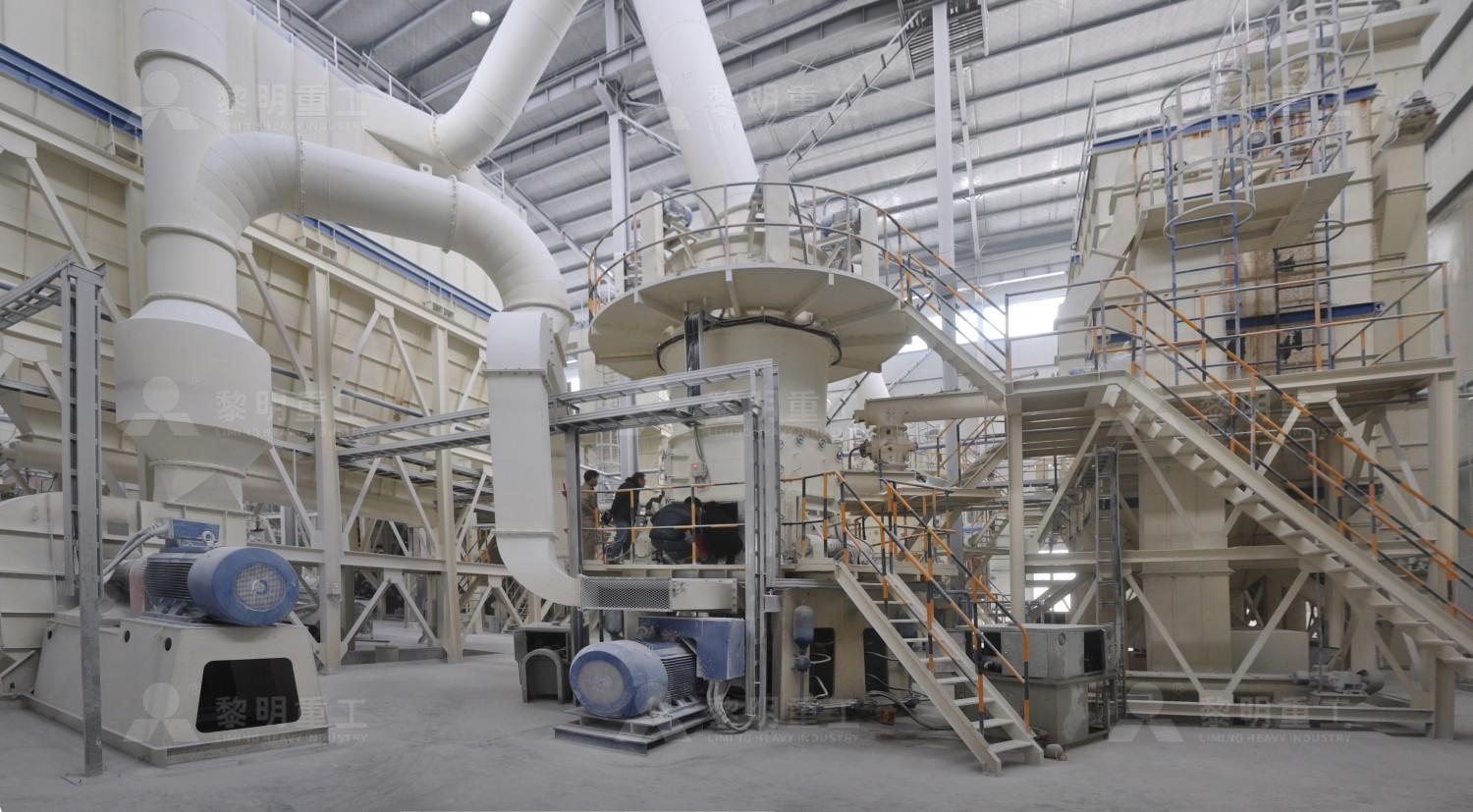

In today’s competitive quarry industry, operational efficiency and product quality are paramount. The LM170 Vertical Roller Mill represents a significant advancement in grinding technology, specifically engineered to meet the rigorous demands of quarry applications. This robust machine has become the preferred choice for operations processing limestone, dolomite, and other non-metallic minerals.

The LM170 integrates multiple processes—crushing, drying, grinding, classifying, and conveying—into a single, compact system. This integrated approach reduces the overall footprint by approximately 50% compared to traditional ball mill systems while simultaneously cutting energy consumption by 30-40%. For quarry operators facing space constraints and rising energy costs, these advantages translate directly to improved profitability.

Advanced Engineering for Superior Performance

What sets the LM170 apart is its innovative grinding mechanism. The mill features two pairs of grinding rollers, each pair comprising two narrow rollers mounted on the same axis but capable of rotating at different speeds. This unique configuration creates optimal grinding conditions while minimizing wear. The symmetrical roller design allows for inversion after significant wear, effectively doubling the service life of these critical components.

The grinding process begins with materials being fed to the center of the grinding table. Centrifugal force moves the material outward across the table, where it’s ground between the rollers and table surface. The ground material is then transported by air flow to the separator, where oversized particles are returned for regrinding while properly sized material continues to the collection system.

Environmental Compliance and Operational Safety

Modern quarries face increasing regulatory pressure regarding emissions and workplace safety. The LM170 addresses these concerns through its fully enclosed negative-pressure operation, which prevents dust escape. The integrated pulse dust collection system and noise reduction technologies ensure compliance with stringent environmental standards while protecting worker health.

For operations requiring even finer powders or specialized applications, we recommend considering our MW Ultrafine Grinding Mill. This advanced system produces powders ranging from 325 to 2500 meshes with exceptional precision, making it ideal for high-value applications in chemicals, paints, and cosmetics. The MW series achieves production capacity 40% higher than jet grinding mills while consuming only 30% of the energy.

Another excellent complementary solution is our LUM Ultrafine Vertical Grinding Mill, which incorporates the latest German powder separating technology and Taiwanese grinding roller advancements. This mill excels in producing superfine dry powders of non-metal ores with superior whiteness and cleanliness, perfect for premium applications where product purity is critical.

Proven Reliability in Demanding Conditions

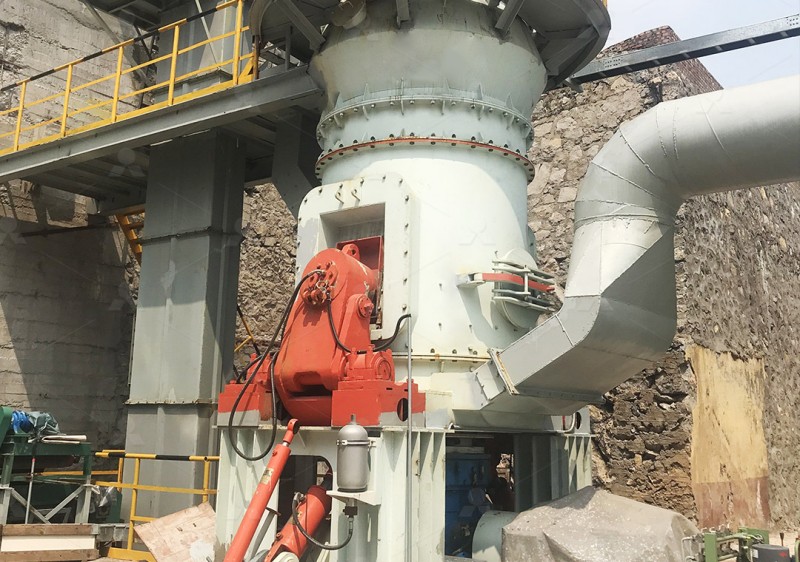

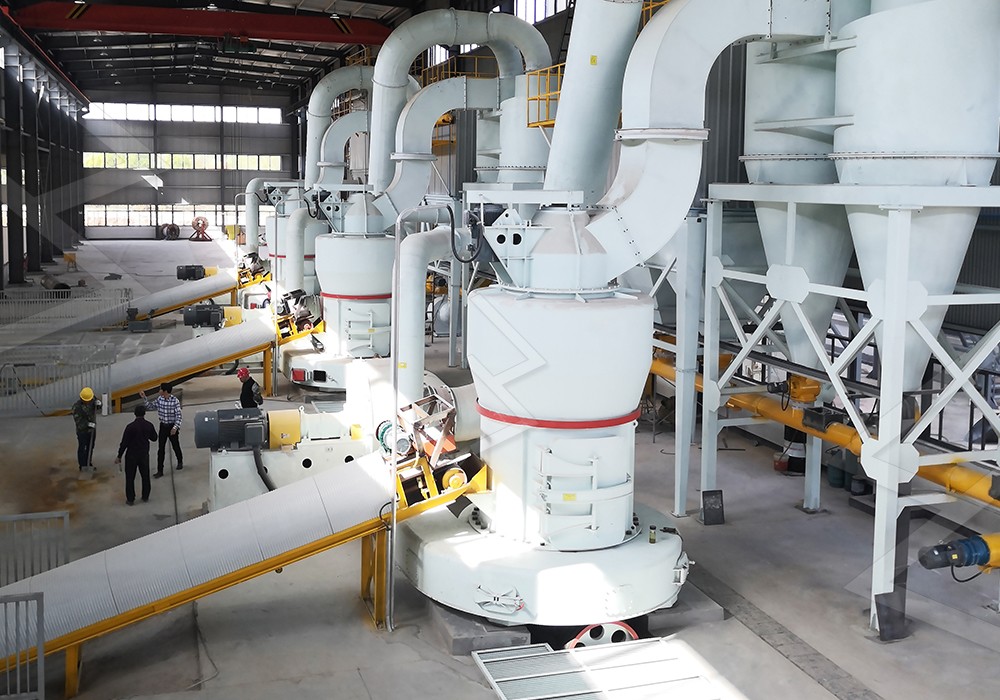

Quarry operations cannot afford extended downtime. The LM170’s design prioritizes reliability through features like the double position-limiting technology that prevents destructive contact between grinding components during unexpected vibration events. The hydraulic adjustment system allows for quick maintenance access, while the external lubrication system enables continuous 24-hour operation.

Digital manufacturing techniques ensure exceptional precision in all core components, with numerical control machining applied to cutting, bending, planing, milling, and painting operations. This manufacturing consistency translates to reliable field performance and interchangeable spare parts availability.

Frequently Asked Questions

What materials can the LM170 process effectively?

The LM170 is optimized for limestone, calcite, dolomite, petroleum coal, gypsum, barite, marble, talc, and various other non-metallic minerals commonly found in quarry operations.

How does the energy consumption compare to traditional ball mills?

The LM170 typically reduces energy consumption by 30-40% compared to equivalent ball mill systems while delivering higher throughput capacity.

What is the typical operational noise level?

With integrated silencers and noise elimination technology, the LM170 operates at significantly lower noise levels than traditional grinding systems, typically below 85 dB at operating stations.

How often do grinding components require replacement?

The symmetrical roller design allows for inversion when wear occurs, effectively doubling service life. Under normal operating conditions, rollers typically last 6,000-8,000 hours before requiring replacement.

Can the system handle variations in feed material moisture?

Yes, the integrated drying capability can handle moisture content up to 15% without requiring a separate drying system, making it suitable for various quarry conditions.
