Limestone Trapezium Mill Production Line for 5TPH 180 Mesh CFB Applications
Optimizing Limestone Preparation for Circulating Fluidized Bed Systems

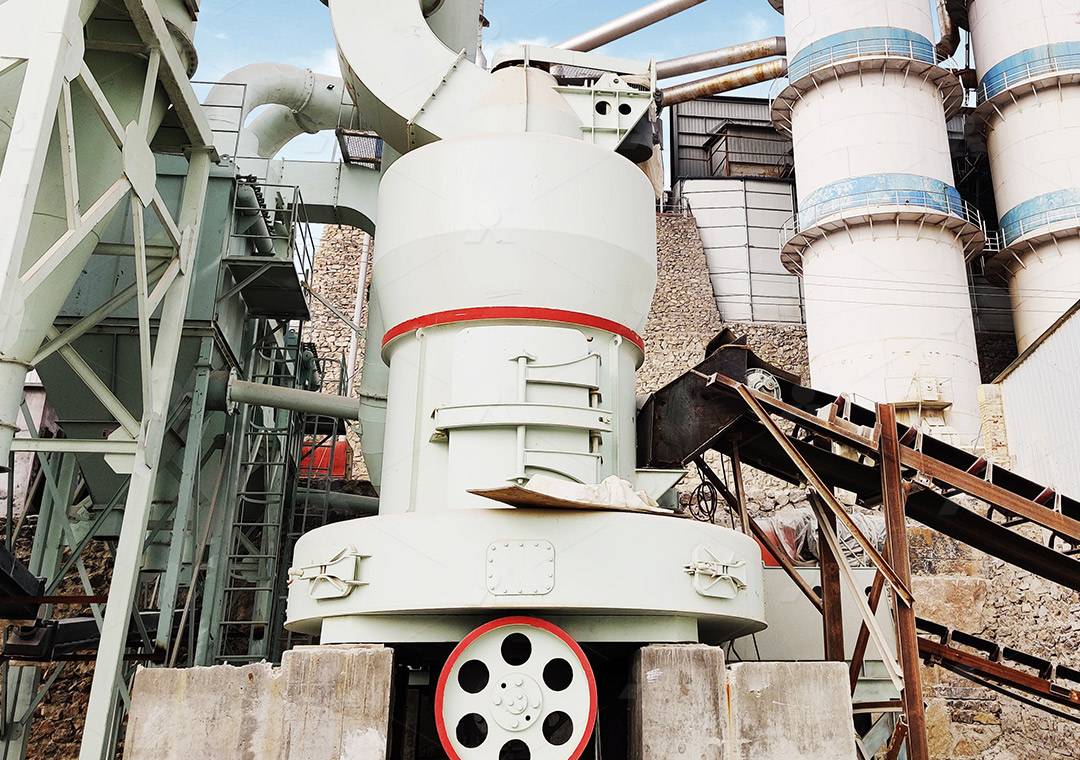

In modern power generation and industrial heating applications, Circulating Fluidized Bed (CFB) technology has emerged as a leading solution for efficient combustion with reduced emissions. The performance of these systems heavily depends on the quality of limestone powder used for sulfur capture, particularly when targeting 180 mesh fineness at 5 tons per hour production rates. Selecting the right grinding equipment becomes paramount for operational efficiency and cost-effectiveness.
The challenge in CFB limestone preparation lies in achieving consistent particle size distribution while maintaining economic viability. Traditional grinding approaches often struggle with the balance between production capacity, energy consumption, and product quality. This is where advanced trapezium mill technology demonstrates significant advantages over conventional ball mills or Raymond mills.
Technical Requirements for CFB Limestone Preparation
For optimal sulfur capture in CFB boilers, limestone particles must meet specific criteria. The 180 mesh (approximately 90 microns) fineness represents the sweet spot where surface area maximizes reactivity while maintaining fluidization characteristics. At 5TPH capacity, the grinding system must deliver consistent output without frequent adjustments or downtime.
Key considerations include:
- Precise particle size control with minimal oversize particles
- Low iron contamination to prevent adverse chemical reactions
- Energy efficiency to reduce operating costs
- Reliable operation with minimal maintenance requirements
- Environmental compliance with dust and noise emissions
Advanced Grinding Solutions for Demanding Applications

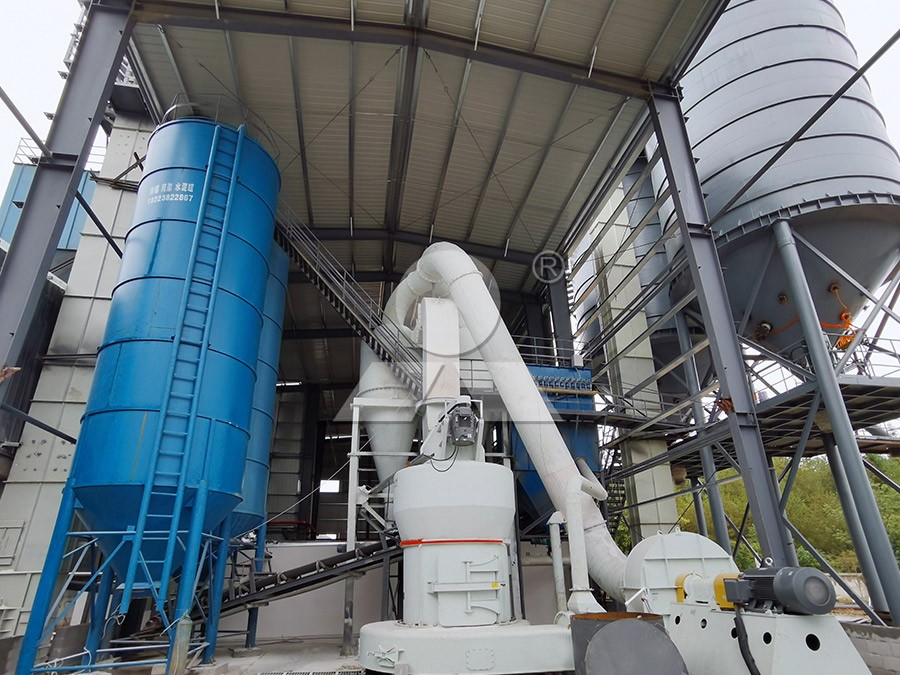

After extensive field testing and technical analysis, our MTW-Z European Trapezium Mill has proven exceptionally suitable for 5TPH 180 mesh CFB limestone applications. This mill incorporates several proprietary technologies that address the specific challenges of limestone preparation.
The MTW-Z series features innovative design elements including diluted oil lubrication for grinding rollers, which eliminates frequent maintenance intervals common in grease-lubricated systems. The absence of shovel blade cylinders in the grinding chamber increases ventilation area, reducing air-conveying resistance and improving overall efficiency. For operations requiring even finer adjustments or different capacity parameters, our MW Ultrafine Grinding Mill offers additional flexibility with its adjustable fineness between 325-2500 meshes and advanced powder selection technology.
Operational Benefits in Real-World Applications

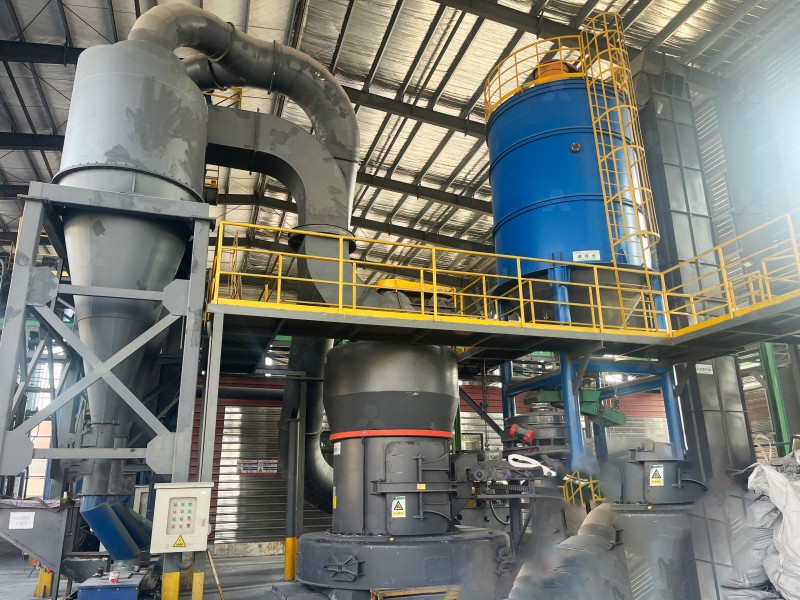

Plants that have implemented the MTW-Z European Trapezium Mill for their CFB limestone needs report notable improvements in several key performance indicators. The elastic volute damping structure effectively minimizes vibration transmission, extending equipment lifespan and reducing structural stress. The low-resistance hanging cage-type powder concentrator demonstrates approximately 15-20% energy savings compared to conventional blade-type separators while maintaining precise particle classification.
Maintenance teams appreciate the accessible design that allows for quicker roller replacement and inspection procedures. The digital processing of core components ensures consistent quality and reliable performance, while the comprehensive spare parts support guarantees minimal downtime when service is required.
Frequently Asked Questions
What makes the MTW-Z European Trapezium Mill particularly suitable for CFB applications?
The MTW-Z mill combines several features essential for CFB limestone preparation, including precise particle size control, low energy consumption, and reliable operation. Its specialized powder concentrator ensures consistent 180 mesh output, while the durable construction handles abrasive limestone with minimal wear.
How does the production capacity adjust if our CFB requirements change?
The MTW-Z mill offers operational flexibility through adjustable grinding pressure and separator speed. For significant capacity changes, different mill sizes are available. The MW Ultrafine Grinding Mill provides additional flexibility for operations that may require different fineness specifications in the future.
What environmental considerations are addressed in these grinding systems?
Both the MTW-Z and MW mills incorporate efficient pulse dust collectors and noise reduction technologies. The closed-system design prevents limestone dust emissions, while advanced sealing mechanisms maintain negative pressure operation, ensuring compliance with environmental standards.
How does the energy consumption compare to traditional ball mills?
The MTW-Z European Trapezium Mill typically reduces energy consumption by 30-40% compared to equivalent ball mill systems. The efficient grinding curve design and advanced transmission system contribute significantly to these savings.
What support is available for maintenance and spare parts?
We provide comprehensive technical support and guarantee availability of original spare parts. The diluted oil lubrication system in the MTW-Z mill reduces maintenance frequency, while the digital monitoring capabilities help anticipate service needs before they affect operation.
