How to Calculate the Height a Steel Ball is Lifted in a Ball Mill

Understanding the dynamics inside a ball mill is crucial for optimizing grinding efficiency. One key parameter is the height to which steel balls are lifted before cascading or cataracting back onto the material bed. This height directly influences the impact energy and, consequently, the size reduction of the ore.

The Basic Principle: Centrifugal Force and Critical Speed

The motion of grinding balls inside a rotating mill drum is governed by centrifugal force. As the mill rotates, the balls are carried up the lining until the gravitational force exceeds the centrifugal force, causing them to fall. The point where centrifugilization occurs is the critical speed, where balls theoretically would cling to the shell and not cascade. The mill typically operates at 65%-80% of this critical speed.

Internal view of a ball mill showing steel balls and liner plates

The Calculation Formula

The maximum height (H) a ball reaches can be derived from the geometry of the mill’s rotation. The formula involves the mill’s radius (R) and the angle (α) at which the ball breaks from the shell.

H = R + R * sin(α)

Where:
R = Inner radius of the mill (meters)
α = The angle of repose (or breakaway angle) of the ball charge.

The angle α itself is a function of the mill’s operating speed (N) relative to its critical speed (Nc). The critical speed is calculated as:

Nc = 42.3 / √(R) (for mill diameter in meters)

At speeds below critical, the balls are lifted to a certain height before falling. The exact calculation of α can be complex, often requiring empirical data or more advanced dynamic simulation software.

Factors Influencing the Actual Lift Height

  • Mill Speed: The primary factor. Higher speeds lift balls higher until critical speed is approached.
  • Liner Profile: The design of the mill’s internal liners (e.g., wave liners, step liners) significantly affects how balls are gripped and lifted.
  • Ball Charge and Filling Ratio: The percentage volume of the mill filled with balls and the size distribution of the balls alter the charge’s dynamic behavior.
  • Pulp Density: In wet grinding, the viscosity and density of the slurry can cushion the balls, affecting their trajectory.

Cascading steel balls inside an industrial grinding mill

Practical Implications and Modern Alternatives

While calculating ball lift is fundamental to traditional ball mill operation, many modern grinding applications demand higher efficiency and finer products. This is where advanced grinding technologies outshine conventional methods.

For operations requiring ultra-fine powder, our MW Ultrafine Grinding Mill presents a superior solution. Unlike ball mills where calculating mechanical lift is key, the MW Mill utilizes a different principle. Its cage-type powder selector, adopting German technologies, provides precise powder separation without relying on complex cascading mechanics. It achieves an adjustable fineness between 325-2500 meshes with a remarkable d97≤5μm sieving rate in a single pass. Furthermore, its innovative design with no rolling bearings or screws in the grinding chamber eliminates many mechanical wear points, leading to more stable and worry-free operation compared to the constant maintenance of ball mill liners and lifters.

For another robust and efficient option, consider our LUM Ultrafine Vertical Grinding Mill. It integrates grinding, classifying, and transporting, offering higher yielding rates and better product quality. Its unique roller shell and lining plate grinding curve design is easier to generate a material layer, achieving a high rate of finished products in a single pass. This eliminates the need to worry about the complex interplay of ball size, lift height, and liner profile that dominates ball mill optimization.

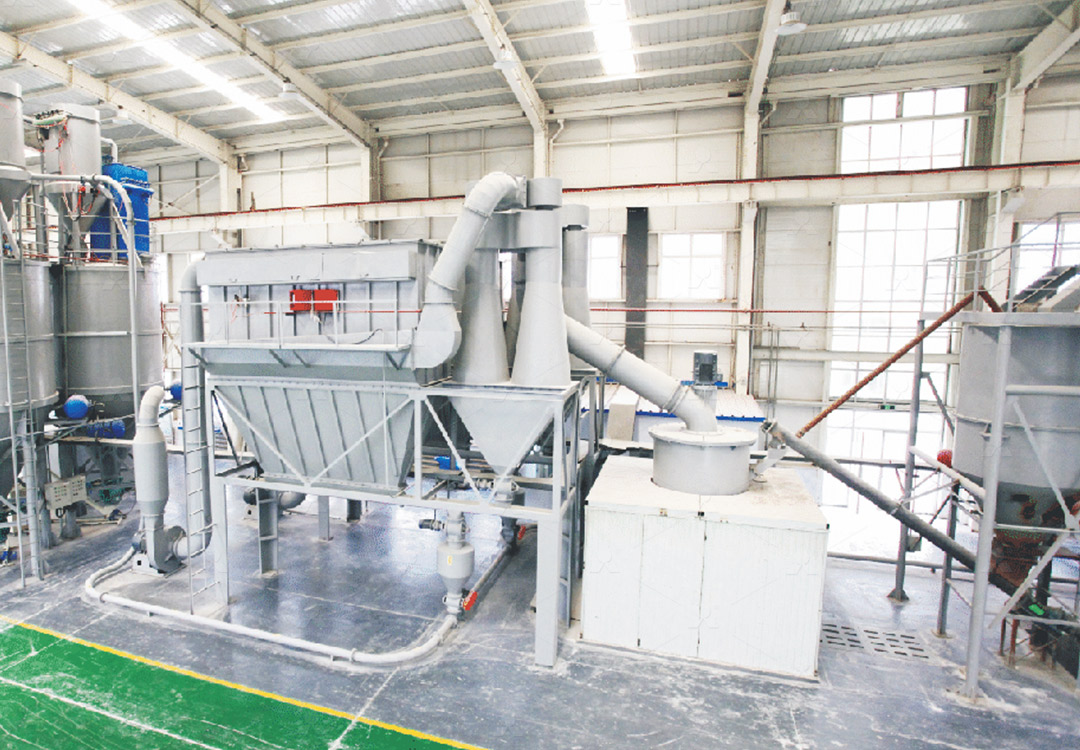

MW Ultrafine Grinding Mill in an industrial setting

Conclusion

Calculating the height a steel ball is lifted in a ball mill is a fundamental exercise in understanding comminution mechanics. It involves analyzing centrifugal force, critical speed, and charge dynamics. While this knowledge is essential for optimizing traditional ball milling, newer technologies like our MW and LUM Ultrafine Grinding Mills offer more controlled, efficient, and lower-maintenance paths to achieving superior product fineness, often making the complex calculations of ball trajectory a thing of the past for many applications.
