How Does a High Pressure Vertical Raymond Mill Improve Grinding Efficiency?
How Does a High Pressure Vertical Raymond Mill Improve Grinding Efficiency?
In the world of industrial mineral processing, grinding efficiency is paramount. It directly impacts operational costs, product quality, and overall profitability. Traditional grinding mills, like ball mills or older Raymond mill designs, often struggle with high energy consumption, inconsistent fineness, and significant maintenance downtime. The evolution towards high-pressure vertical roller mills, such as the advanced designs we develop at LIMING, represents a significant leap forward in grinding technology.
The Core Mechanisms of Enhanced Efficiency

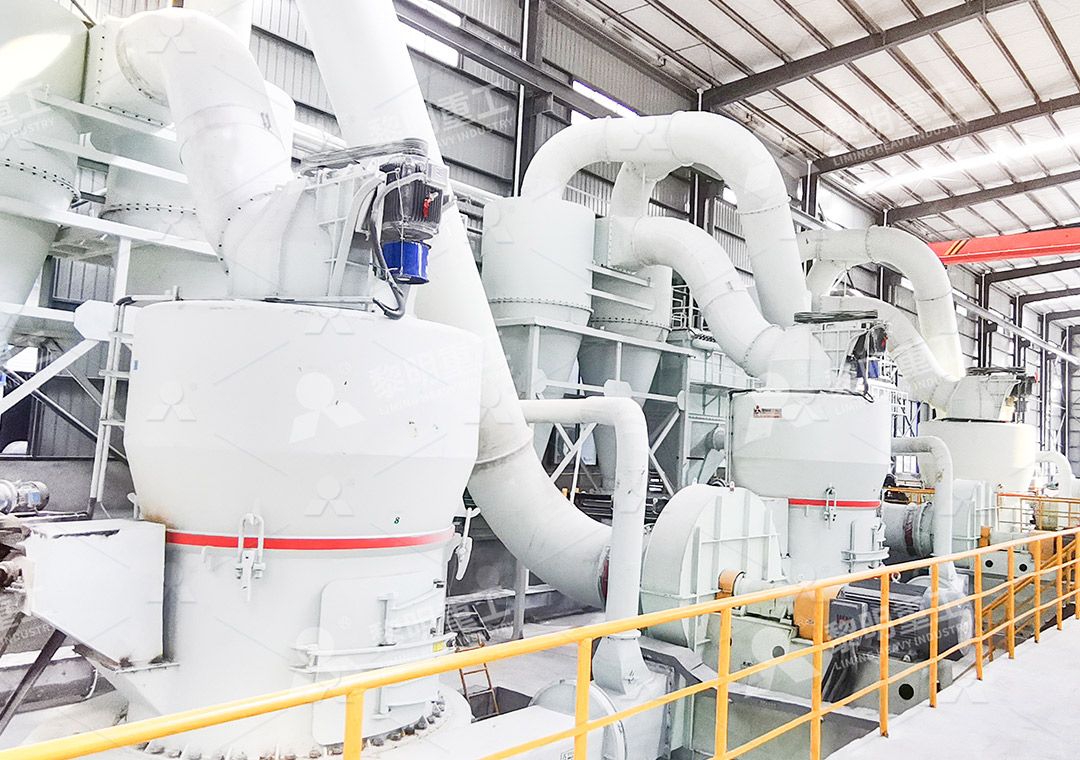

The efficiency gains in a modern high-pressure vertical mill are not accidental; they are the result of intentional engineering innovations. The application of high grinding pressure is the most critical factor. By utilizing a robust hydraulic system, these mills exert tremendous pressure on the material bed between the grinding rollers and the grinding table. This pressure causes inter-particle comminution, where particles grind against each other, which is far more efficient than the impact and attrition methods dominant in traditional ball mills. This results in a substantial reduction in specific energy consumption per ton of processed material.
Furthermore, the vertical configuration itself contributes to efficiency. Material is fed onto the center of the rotating table and moves outward under centrifugal force, passing under the rollers. The ground material is then transported by an internal air stream to a highly efficient classifier. This integrated grinding and classifying process within a single housing minimizes energy losses associated with material handling and external classification systems. The air flow also assists in drying moist materials during the grinding process, eliminating the need for a separate dryer in many applications.

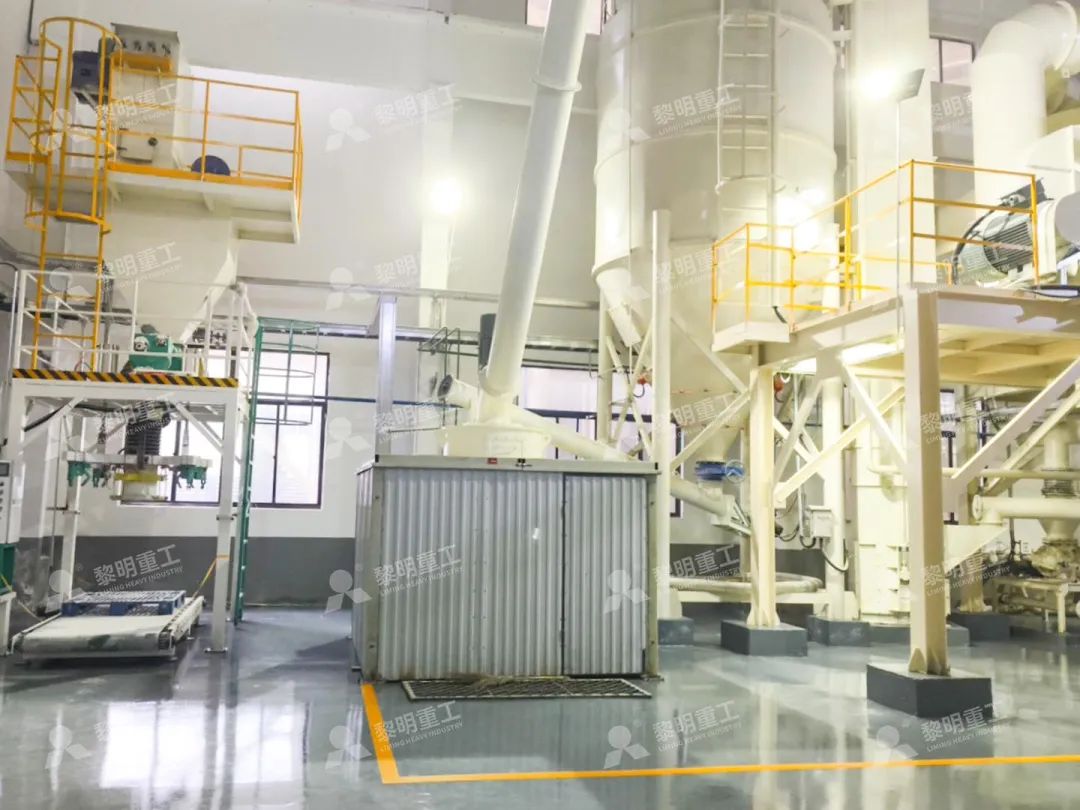

Introducing the MW Ultrafine Grinding Mill
For operations demanding ultra-fine powders, our MW Ultrafine Grinding Mill stands out as a premier solution. Engineered for customers who need to make ultra-fine powder, this machine is a testament to modern grinding efficiency.
- Higher Yielding, Lower Energy Consumption: Its newly designed grinding curves of the grinding roller and ring enhance efficiency dramatically. With the same fineness and power, its production capacity is 40% higher than jet mills and twice that of ball mills, while system energy consumption is only 30% of a jet mill.
- Adjustable Fineness (325-2500 meshes): A German-technology cage-type powder selector allows for precise separation, enabling users to achieve a precise fineness up to d97≤5μm in a single pass.
- Eco-Friendly Operation: Equipped with an efficient pulse dust collector and muffler, the entire milling system operates without dust pollution and with reduced noise, fully complying with national environmental protection standards.
With an input size of 0-20 mm and a capacity range of 0.5-25 tph, the MW series is perfectly suited for processing materials like limestone, calcite, dolomite, and talc for industries ranging from chemicals to cosmetics.
Superior Design for Uninterrupted Performance
A key design feature that bolsters efficiency is the elimination of rolling bearings and screws inside the grinding chamber. This innovative approach eliminates common failure points, freeing users from worries about bearing damage or machine failure caused by loose screws. Lubrication is performed externally without shutdown, enabling continuous 24/7 production and maximizing operational uptime.
Another model that exemplifies these efficiency principles is our LUM Ultrafine Vertical Grinding Mill. It incorporates the latest roller technology and German powder separating technology, integrating grinding, grading, and transporting into one unit. Its unique roller shell and lining plate grinding curve promotes easier material layer formation, enabling a high rate of finished product in a single pass, which greatly enhances whiteness and cleanliness.
Conclusion: A Smart Investment for Modern Grinding
In conclusion, the high-pressure vertical Raymond mill improves grinding efficiency through a combination of high-pressure inter-particle comminution, an integrated vertical design, intelligent material classification, and robust, maintenance-friendly engineering. For any operation looking to reduce energy costs, increase yield, and produce a superior, consistent product, investing in this advanced technology is a strategic move. Our MW and LUM series mills embody these principles, offering proven, reliable, and efficient solutions for the most demanding grinding applications.
