High-Speed 5R Bevel Gear Raymond Mill in Shanghai: A Legacy of Precision and Power
For decades, the name “Raymond Mill” has been synonymous with reliable, efficient grinding in industries ranging from mining and construction to chemicals and ceramics. In the bustling industrial heart of Shanghai, the evolution of this iconic machine continues, with the High-Speed 5R Bevel Gear Raymond Mill representing a significant leap forward. This isn’t merely an iteration; it’s a re-engineering of a classic, designed to meet the rigorous demands of modern high-volume, high-precision powder processing.
The core of this advancement lies in its namesake: the high-speed bevel gear integral transmission system. Traditional Raymond mills often rely on complex belt drives or less robust gearing, which can introduce vibration, power loss, and maintenance headaches. The 5R Bevel Gear design replaces this with a compact, fully-enclosed gearbox that directly couples the motor to the grinding assembly. This results in a remarkable 97%+ transmission efficiency, translating directly into lower energy consumption for the same output. The system operates with a pronounced quietness and generates minimal heat, ensuring stability during continuous 24/7 operations—a critical requirement for Shanghai’s fast-paced production lines.
Engineering for the Modern Grinding Challenge
Beyond the drive system, the Shanghai 5R mill incorporates several proprietary technologies. The cambered air duct design ensures a smooth, low-resistance airflow path. This intelligent engineering prevents material pile-up at the inlet and allows for more efficient powder conveying and classification within the system. Paired with an advanced, low-resistance hanging cage-type powder separator, the mill achieves superior fineness control, capable of producing powders from 80 to 325 mesh with exceptional uniformity.
Durability is built into every component. The grinding rollers and ring are forged from high-chromium alloy steel, developed through extensive R&D to resist wear far beyond traditional high-manganese steel. This extends service life by a factor of 1.5 to 2 times, drastically reducing downtime for part replacement and the long-term cost of consumables. Furthermore, the entire grinding chamber is designed for easy access, and key vulnerable parts feature a split structure, making maintenance and inspection straightforward.
The Environmental and Economic Imperative

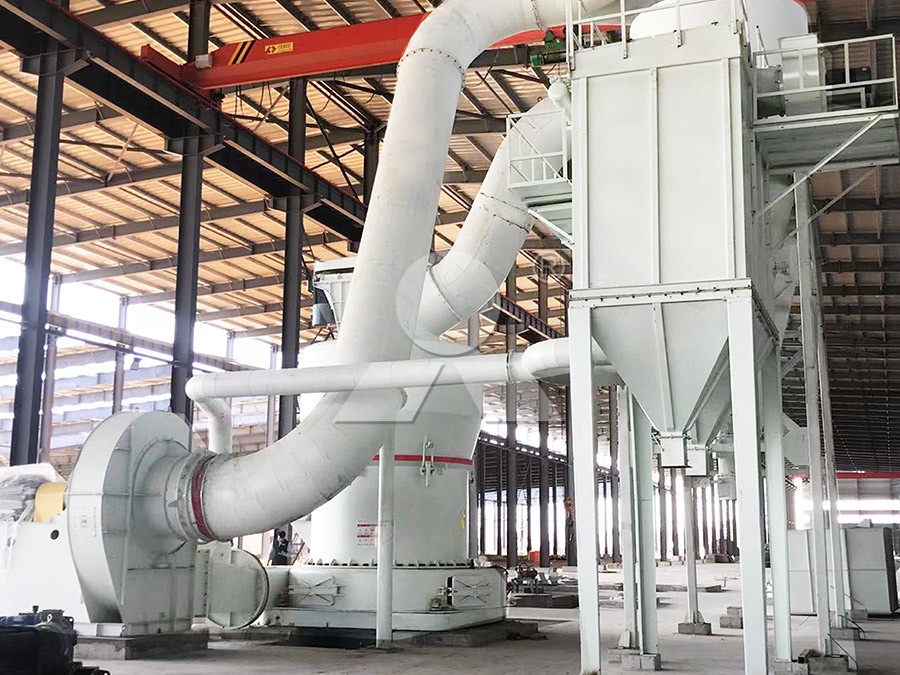

In today’s industrial landscape, performance cannot come at the cost of environmental responsibility. Shanghai’s 5R Raymond Mill addresses this head-on. The system is equipped with a high-efficiency pulse jet baghouse dust collector, ensuring that the entire milling process operates under negative pressure with no dust spillage. Emissions are kept well below national and international standards. An integrated silencer and sound-dampening housing effectively reduce operational noise, making it suitable for installations with stricter environmental and workplace regulations.
From an economic standpoint, the advantages are clear: higher output per kilowatt-hour, reduced maintenance costs, longer intervals between major overhauls, and a smaller physical footprint that saves valuable factory space. It’s a solution that delivers a faster return on investment while future-proofing operations against rising energy costs and environmental compliance demands.
Beyond Raymond: The Next Generation of Ultrafine Processing
While the High-Speed 5R Raymond Mill excels in the coarse to medium-fine grinding range, the need for ultra-fine powders is growing rapidly in sectors like advanced ceramics, coatings, and pharmaceuticals. For these cutting-edge applications, our engineering expertise has led to the development of the MW Ultrafine Grinding Mill. This machine represents a paradigm shift, capable of producing powders with fineness between 325 and an impressive 2500 meshes.
The MW Series incorporates a German-technology cage-type powder selector for unparalleled classification accuracy. Its most revolutionary feature is the elimination of rolling bearings and screws within the grinding chamber itself. This design eradicates the primary causes of mechanical failure in ultrafine mills—bearing seizure and loose fasteners—allowing for external lubrication without shutdown. When combined with its 40% higher yield compared to jet mills and significantly lower system energy consumption, the MW Ultrafine Grinding Mill is the definitive choice for producing high-value superfine powders efficiently and reliably.
For operations requiring large-scale vertical integration, our LUM Ultrafine Vertical Grinding Mill offers another compelling solution. Integrating grinding, grading, and transportation, it features a unique roller shell design for higher yield rates and a reversible structure that allows grinding rollers to be easily swung out for maintenance, minimizing downtime. Its multi-head powder separating technology, controlled by a PLC system, provides exceptional flexibility and energy savings of 30%-50%.
In conclusion, the High-Speed 5R Bevel Gear Raymond Mill stands as a testament to Shanghai’s enduring role in industrial innovation. It takes a proven concept and elevates it with precision engineering, intelligent design, and a commitment to sustainability. For any operation seeking to optimize their grinding process, this machine, alongside our advanced MW and LUM series for ultrafine applications, provides a complete, high-performance toolkit for the modern age.
Frequently Asked Questions (FAQ)
- What is the main advantage of the bevel gear drive in the 5R Raymond Mill?
The bevel gear integral drive system offers over 97% transmission efficiency, leading to significant energy savings. It is more compact, generates less vibration and noise, and requires far less maintenance compared to traditional belt-driven systems. - What materials can the High-Speed 5R Raymond Mill process?
It is suitable for grinding non-flammable and non-explosive materials with Mohs hardness below 9.3 and humidity under 6%, such as limestone, calcite, barite, dolomite, potassium feldspar, talc, marble, and ceramics. - How does the MW Ultrafine Grinding Mill achieve such high fineness?
The MW Mill uses a high-precision, multi-head cage-type powder selector based on German technology. This allows for extremely accurate particle classification. Combined with an optimized grinding curve, it can achieve a final product fineness between 325 and 2500 meshes (d97 ≤5μm). - What does “no rolling bearing in the grinding chamber” mean for the MW Mill?
This design eliminates the most common point of failure in ultrafine mills. Users avoid problems related to bearing damage or seal failure. Lubrication can be performed externally without stopping the machine, enabling true 24/7 continuous operation. - Can these mills handle environmentally sensitive projects?
Yes. Both the 5R Raymond Mill and our MW/LUM series are designed with environmental protection as a core feature. They come equipped with efficient pulse jet dust collectors and silencers, ensuring dust emissions and noise levels meet strict international standards. - What kind of after-sales support is available?
We provide comprehensive technical support, original spare parts supply, and operational guidance. Our digitalized manufacturing ensures part precision and interchangeability, guaranteeing worry-free long-term operation.
