High Efficiency Ultra Fine Raymond Mill for Mining Grinding Production Line
Revolutionizing Mineral Processing with Advanced Grinding Technology
In today’s competitive mining industry, achieving optimal particle size distribution while maintaining operational efficiency represents a significant challenge for production managers and plant operators. The demand for ultra-fine powders across various industrial applications has driven the need for more sophisticated grinding equipment that can deliver precise results without compromising on energy consumption or environmental compliance.
Traditional grinding methods often fall short when processing materials to the sub-325 mesh range, where particle uniformity and production consistency become critical factors. The limitations of conventional ball mills and early-generation Raymond mills become particularly apparent when handling materials with specific hardness characteristics or when stringent environmental regulations must be met.
Advanced Engineering Solutions for Modern Mining Operations
Our engineering team has dedicated significant resources to developing grinding solutions that address these industry challenges head-on. Through extensive research and field testing, we’ve identified key areas where technological innovation can dramatically improve grinding performance while reducing the total cost of ownership.

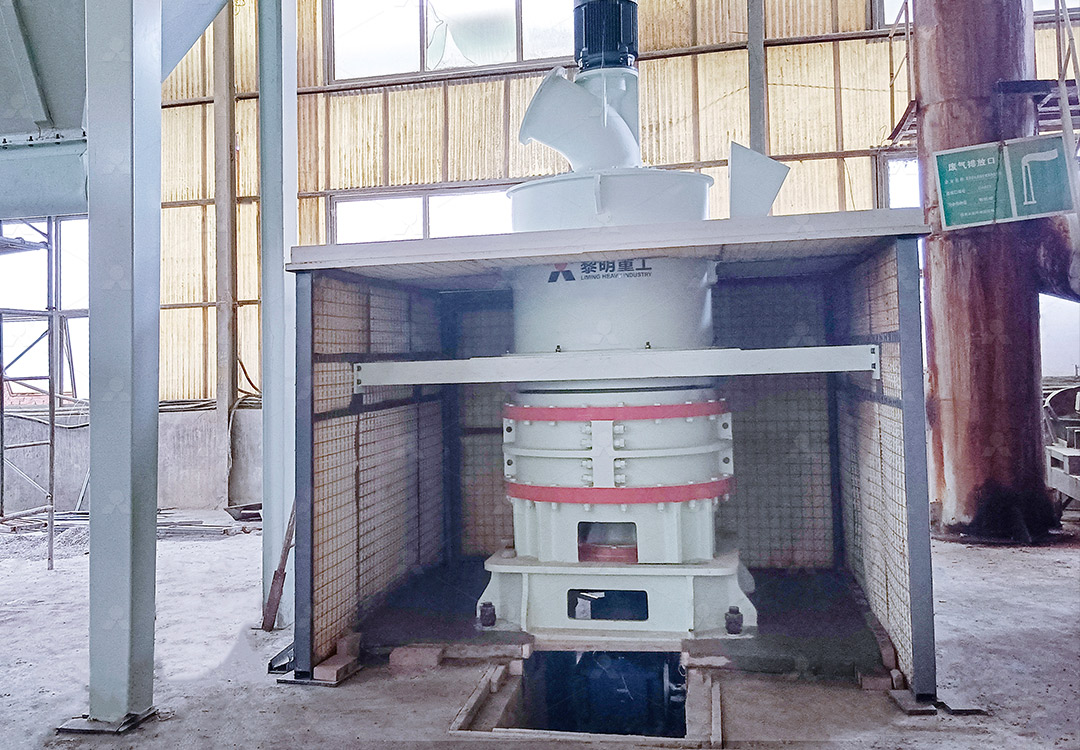

One standout solution that has proven particularly effective in mining applications is our MW Ultrafine Grinding Mill. This advanced system represents a significant leap forward in grinding technology, specifically engineered for customers requiring ultra-fine powder production. With an input size capability of 0-20 mm and throughput ranging from 0.5 to 25 tph, this machine offers remarkable flexibility across various mining applications.
Key Technological Breakthroughs
The MW series incorporates several proprietary technologies that set it apart from conventional grinding equipment. The newly designed grinding curves of the grinding roller and grinding ring have demonstrated a 40% higher production capacity compared to jet grinding mills and stirred grinding mills operating at the same fineness and power levels. Even more impressively, the yield doubles that of traditional ball grinding mills while system energy consumption drops to just 30% of jet grinding mill requirements.
What truly distinguishes this technology is its adjustable fineness capability, ranging from 325 to 2500 meshes. The cage-type powder selector, incorporating German technologies, ensures exceptional precision in powder separation. This system can be configured with multi-head cage-type powder selectors tailored to specific user requirements for yield, fineness, and sieving rate, achieving d97≤5μm in a single pass.
Operational Reliability and Environmental Compliance
From a maintenance perspective, the elimination of rolling bearings and screws within the grinding chamber addresses common failure points that plague traditional grinding equipment. Operators no longer need to worry about bearing damage or sealing part failures, nor machine damage caused by loose screws. The external lubrication system enables continuous 24-hour operation without shutdowns for maintenance.

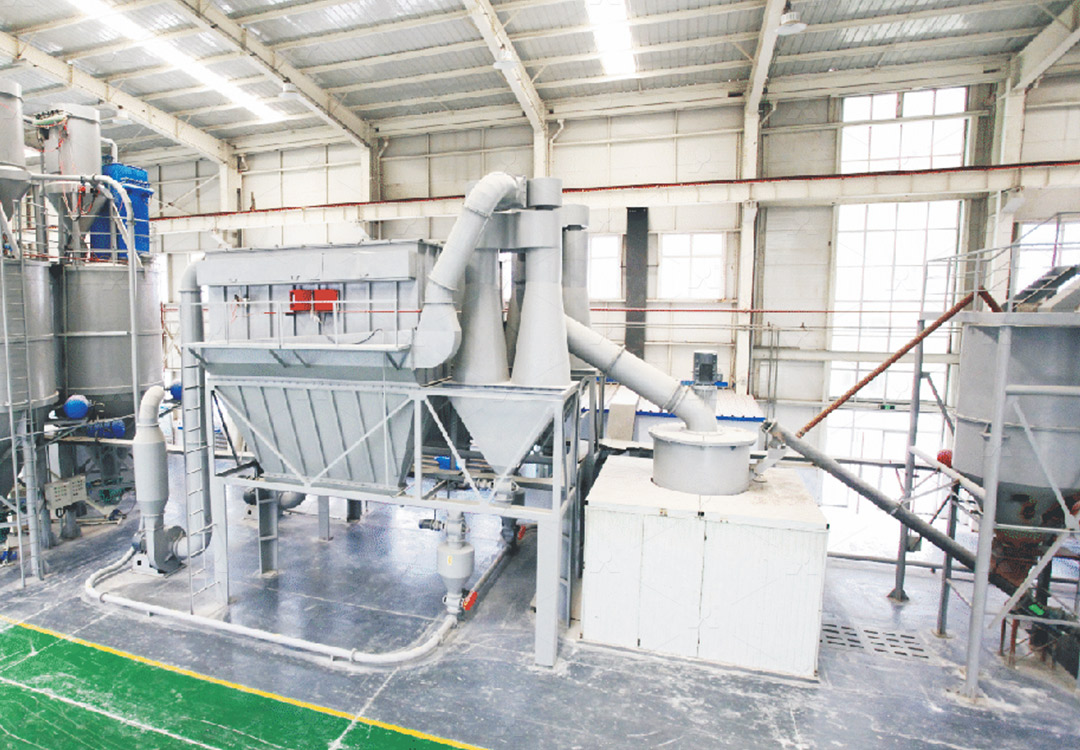

Environmental considerations have been integral to the design philosophy. The integrated efficient pulse dust collector ensures no dust pollution during operation, while silencers and noise elimination rooms maintain workplace noise at acceptable levels. The entire production system complies fully with national environmental protection standards, making it an ideal choice for operations in environmentally sensitive areas.
Application Versatility
The MW Ultrafine Grinding Mill demonstrates exceptional performance across a wide range of materials including limestone, calcite, dolomite, petroleum coal, gypsum, barite, marble, talc, and various chemical industry applications such as paint, cosmetics, medicine, and food additives. This versatility makes it an excellent investment for operations processing multiple material types or those looking to diversify their product offerings.
For operations requiring vertical grinding solutions, our LUM Ultrafine Vertical Grinding Mill presents another compelling option. Independently developed with input size of 0-10 mm and capacity of 5-18 tph, this mill integrates the latest Taiwan grinding roller technology and German powder separating technology. Its unique roller shell and lining plate grinding curve design facilitates easier material layer generation and enables high rates of finished products through single-pass powder milling.
Frequently Asked Questions
What is the typical energy savings compared to traditional grinding mills?
The MW Ultrafine Grinding Mill reduces energy consumption by approximately 70% compared to jet grinding mills and offers double the yield of ball grinding mills with similar power input.
How does the maintenance requirement compare to conventional mills?
Maintenance requirements are significantly reduced due to the absence of rolling bearings and screws in the grinding chamber. The external lubrication system allows for continuous operation without shutdowns for lubrication maintenance.
What particle size range can be achieved?
The MW series can produce powders ranging from 325 to 2500 meshes, with the capability to achieve d97≤5μm in a single processing stage.
Are these mills suitable for environmentally sensitive operations?
Yes, both the MW and LUM series are designed with comprehensive environmental protection features including efficient pulse dust collectors and noise reduction systems that meet national environmental standards.
What materials have been successfully processed with these mills?
These mills have demonstrated excellent performance with various materials including limestone, calcite, dolomite, gypsum, barite, marble, talc, coal powder, and numerous chemical industry materials.
