Custom Ultra Fine Raymond Mill Models for Industrial Applications
Custom Ultra Fine Raymond Mill Models for Industrial Applications
In today’s competitive industrial landscape, achieving precise particle size distribution and optimal production efficiency is paramount for businesses processing minerals, chemicals, and various raw materials. The evolution of grinding technology has moved far beyond traditional ball mills, with ultra-fine grinding mills now offering unprecedented control over product fineness, energy consumption, and operational reliability. These advanced milling solutions have become indispensable across numerous sectors, from pharmaceuticals and cosmetics to construction materials and industrial minerals.
The demand for customized grinding solutions has never been higher, as manufacturers seek equipment specifically tailored to their unique material characteristics and production requirements. Modern ultra-fine mills incorporate sophisticated technologies that allow for precise adjustment of particle size distribution, improved energy efficiency, and reduced environmental impact. These advancements represent a significant departure from earlier generation milling equipment, offering operators greater flexibility and control over their production processes.
Advanced Grinding Technologies for Modern Industry

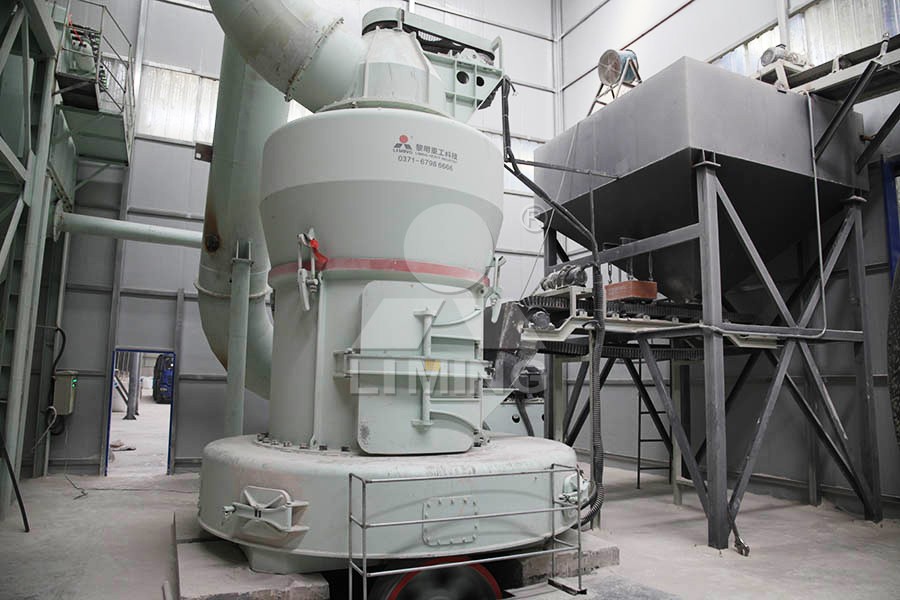

Contemporary grinding mills leverage multiple technological innovations to deliver superior performance. German powder separating technology, for instance, has revolutionized classification efficiency, while advanced grinding curves optimize the interaction between grinding rollers and rings. The integration of PLC control systems enables precise regulation of grinding parameters, allowing operators to maintain consistent product quality while adapting to varying feed materials.
Environmental considerations have also driven significant improvements in mill design. Modern systems incorporate efficient pulse dust collectors and noise reduction technologies that minimize the ecological footprint of grinding operations. These features not only ensure compliance with stringent environmental regulations but also create safer, more comfortable working conditions for plant personnel.
Specialized Mill Recommendations for Diverse Applications

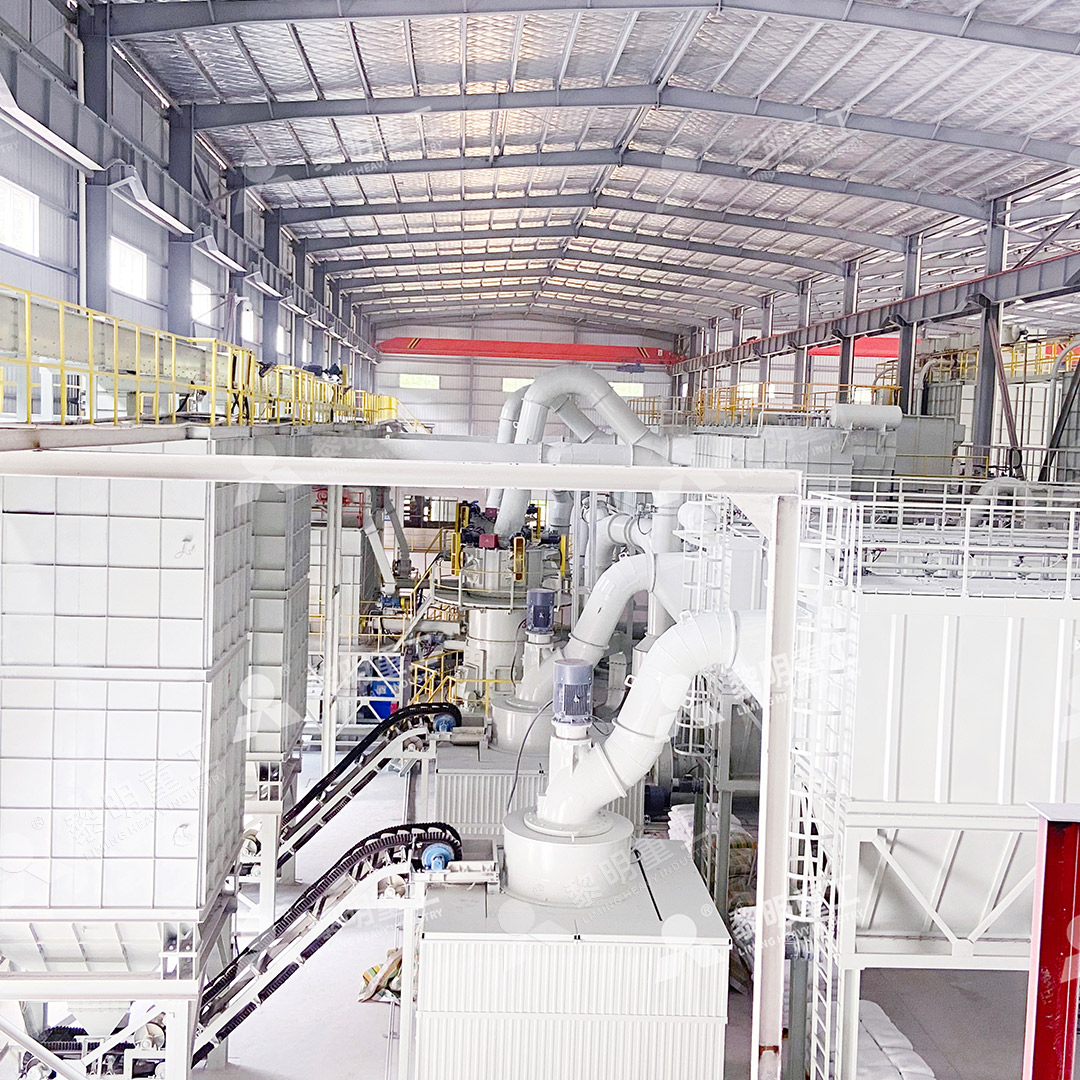

For operations requiring exceptional fineness control between 325-2500 meshes, the MW Ultrafine Grinding Mill represents an optimal solution. This machine demonstrates remarkable efficiency with its capacity ranging from 0.5-25 tph while handling input sizes up to 20 mm. The innovative design eliminates rolling bearings and screws within the grinding chamber, substantially reducing maintenance concerns and potential downtime. Operations benefit from its higher yield and lower energy consumption – achieving 40% higher production capacity compared to jet grinding mills while consuming only 30% of the energy.
When vertical grinding configuration is preferred, the LUM Ultrafine Vertical Grinding Mill offers distinct advantages for processing materials with input sizes up to 10 mm and capacities between 5-18 tph. Its unique roller shell and lining plate grinding curve facilitate easier material layer generation, enabling high rates of finished products through single-pass powder milling. The mill’s double position-limiting technology ensures operational stability by preventing destructive impacts during machine vibration, while the reversible structure simplifies maintenance procedures significantly.
Operational Excellence Through Intelligent Design
The most significant advancements in grinding technology focus on enhancing operational reliability and reducing maintenance requirements. Designs that eliminate potential failure points, such as the absence of rolling bearings in grinding chambers, substantially increase equipment lifespan. Similarly, external lubrication systems enable maintenance without production stoppages, supporting continuous 24-hour operation that maximizes plant productivity.
Digital manufacturing techniques further contribute to equipment reliability by ensuring high precision in core components. Numerical control machining of critical parts guarantees consistent performance and perfect alignment within the grinding system, while comprehensive spare parts support ensures worry-free operation throughout the equipment lifecycle.
FAQ
What is the typical fineness range achievable with modern ultra-fine grinding mills?
Advanced models like the MW Ultrafine Grinding Mill can produce powders ranging from 325 to 2500 meshes, with some capable of achieving d97≤5μm in a single pass. The exact range depends on the specific material characteristics and the grinding mill configuration.
How do modern grinding mills address environmental concerns?
Contemporary designs incorporate multiple environmental protection features including efficient pulse dust collectors that eliminate dust pollution, mufflers and noise elimination rooms that reduce operational noise, and fully sealed systems that prevent material leakage. These features ensure compliance with national environmental protection standards.
What maintenance advantages do newer mill designs offer?
Innovations such as the absence of rolling bearings in grinding chambers, external lubrication systems, and reversible structures for easy component access significantly reduce maintenance requirements. These designs prevent common issues like bearing damage or loose screws while enabling easier inspection and replacement of wear parts.
How does the energy consumption of modern ultra-fine mills compare to traditional equipment?
Advanced grinding mills typically reduce energy consumption by 30%-50% compared to conventional equipment like ball mills or jet mills. This efficiency is achieved through optimized grinding curves, improved powder separation technology, and intelligent system design that minimizes energy waste.
Can these grinding mills handle heat-sensitive materials?
Many modern mills incorporate advanced cooling systems and controlled grinding environments that make them suitable for heat-sensitive materials. The specific capabilities depend on the mill model and configuration, with some designs specifically engineered for temperature-critical applications.
