Complete Set of Equipment for Pebble Grinding Production Line
Complete Set of Equipment for Pebble Grinding Production Line
Establishing an efficient pebble grinding production line requires careful consideration of multiple factors, from raw material characteristics to final product specifications. The selection of appropriate grinding equipment stands as the cornerstone of operational success, directly impacting throughput, energy consumption, and product quality.
Pebbles, with their moderate hardness and abrasive nature, demand robust grinding solutions capable of transforming them into various powder finenesses for applications across construction, ceramics, and industrial fillers. A complete production line typically integrates crushing, grinding, classifying, and collecting systems working in harmony.
Critical Equipment Selection for Optimal Performance
The heart of any pebble grinding operation lies in the milling equipment. Different grinding technologies offer distinct advantages depending on production requirements. For operations demanding ultra-fine powders with precise particle distribution, advanced grinding mills become indispensable.

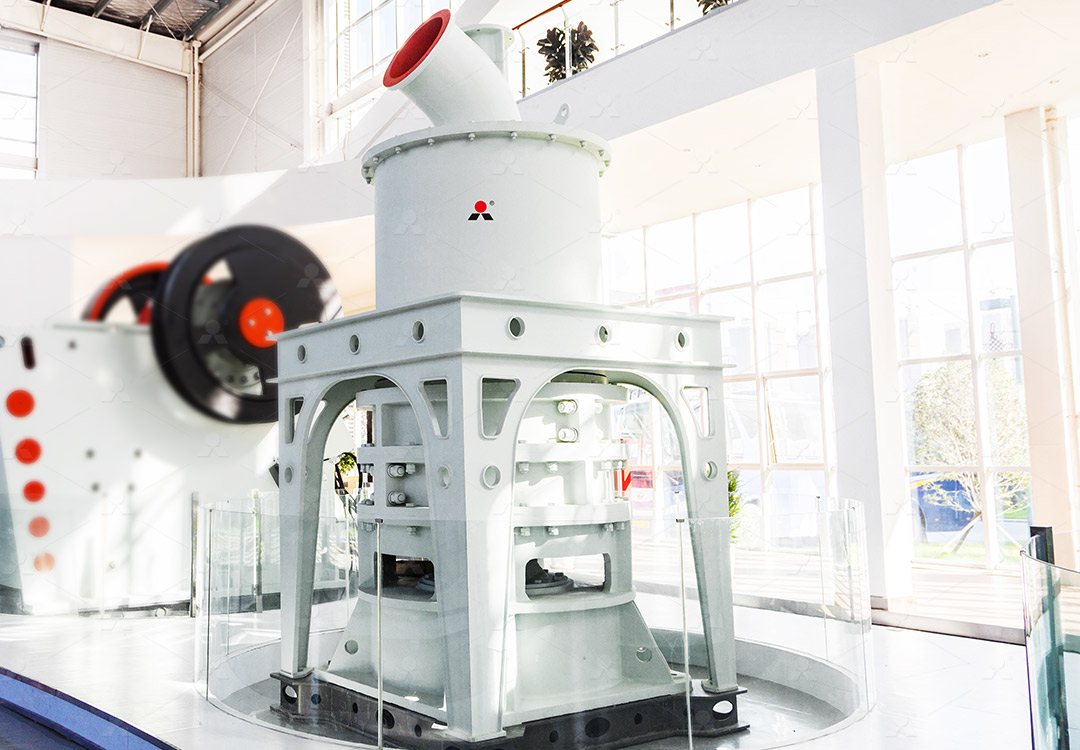

Among the technological innovations in this sector, the MW Ultrafine Grinding Mill represents a significant advancement. Engineered for customers requiring ultra-fine powder between 325-2500 meshes, this machine processes materials with input sizes up to 20mm at capacities ranging from 0.5 to 25 tons per hour. Its innovative design eliminates rolling bearings and screws within the grinding chamber, substantially reducing maintenance concerns and potential machine damage from loose components. The external lubrication system enables continuous 24-hour operation without shutdowns for maintenance.
For operations prioritizing vertical grinding efficiency, the LUM Ultrafine Vertical Grinding Mill offers exceptional performance. With its input size capacity of 0-10mm and throughput of 5-18 tph, this mill integrates the latest grinding roller technology with German powder separation expertise. Its reversible structure simplifies maintenance procedures, allowing operators to easily move grinding rollers outside the body for inspection and component replacement, thereby minimizing production downtime.
System Integration and Environmental Considerations

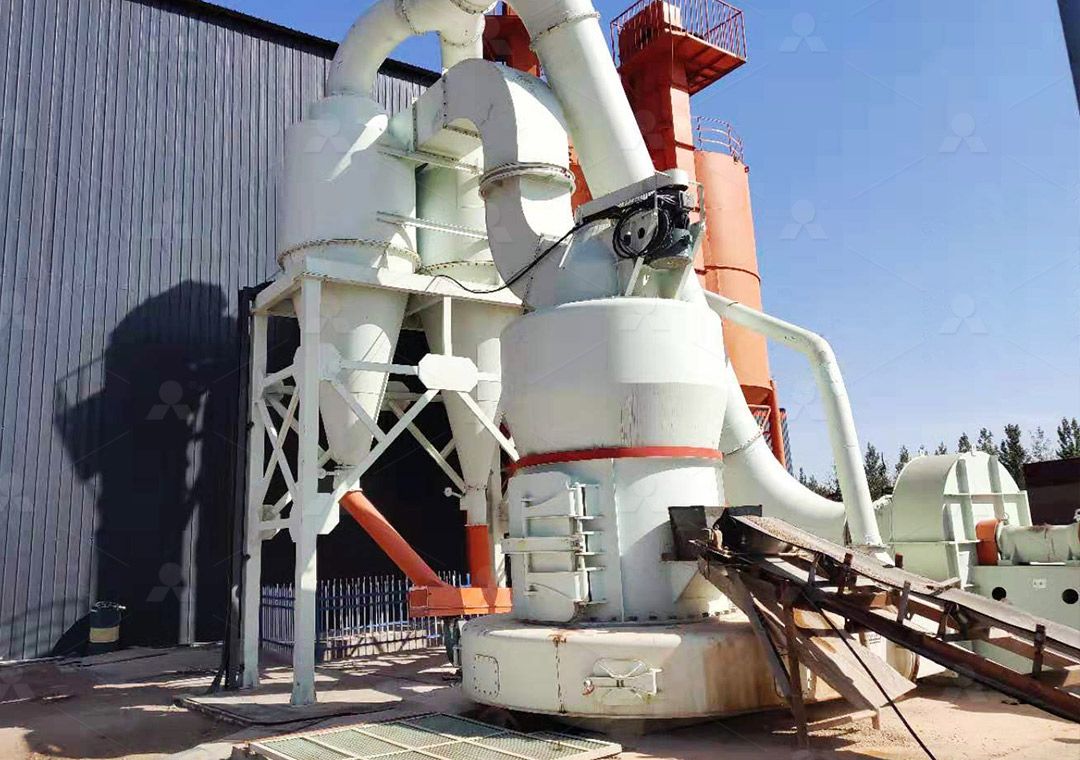

A complete pebble grinding production line extends beyond the core grinding equipment. Efficient material handling, dust control, and noise reduction systems contribute significantly to both operational efficiency and environmental compliance. Modern grinding installations incorporate advanced pulse dust collectors and mufflers that effectively contain particulate matter and reduce noise emissions to meet stringent environmental standards.
The MW Ultrafine Grinding Mill exemplifies this approach with its integrated efficient pulse dust collector, ensuring dust-free operation throughout the milling process. Combined with silencer technology and noise elimination rooms, the system operates well within national environmental protection requirements while maintaining high production standards.
Similarly, the LUM Ultrafine Vertical Grinding Mill incorporates double position-limiting technology that enhances operational stability by preventing destructive impacts between grinding components during unexpected vibration events. This protective feature, combined with PLC-controlled multi-head powder separating technology, ensures consistent product quality while reducing energy consumption by 30-50% compared to conventional grinding mills.
Production Workflow and Quality Control

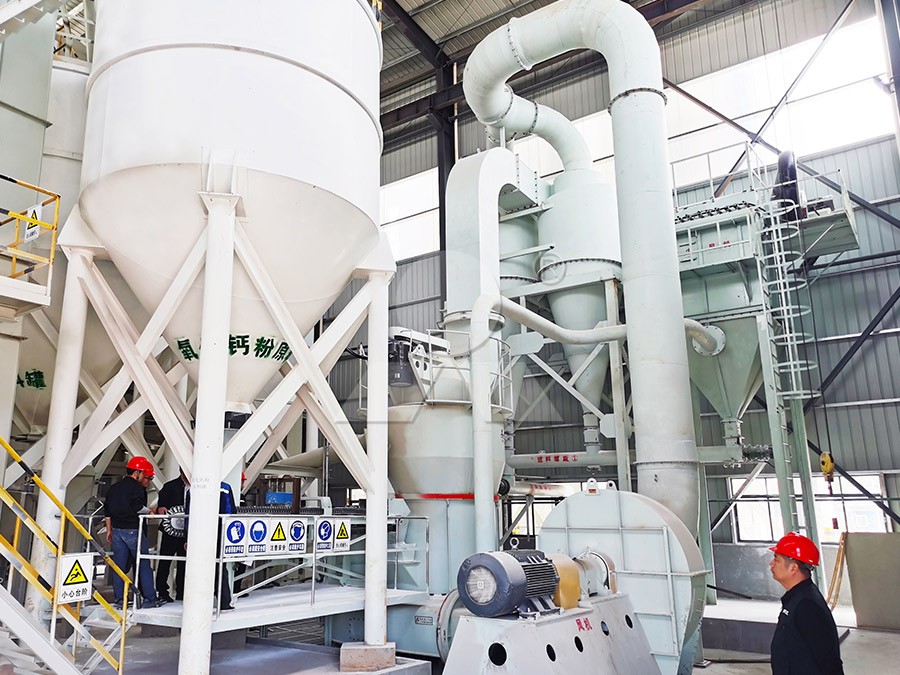

A well-designed pebble grinding production line follows a logical material progression from raw feed to finished product. Initial crushing stages reduce pebbles to manageable sizes before feeding into the grinding system. Within the mill, precisely engineered grinding curves on rollers and rings optimize material contact and grinding efficiency.
The MW Ultrafine Grinding Mill achieves its exceptional performance through newly designed grinding curves that enhance efficiency, delivering 40% higher production capacity than jet grinding mills and double the output of ball grinding mills at equivalent fineness and power consumption. The cage-type powder selector, incorporating German technology, provides precise separation control, enabling operators to fine-tune product specifications according to application requirements.
Frequently Asked Questions
What is the typical production capacity range for a complete pebble grinding line?
Production capacities vary significantly based on equipment selection and final product specifications. For instance, the MW Ultrafine Grinding Mill processes 0.5-25 tph, while the LUM Ultrafine Vertical Grinding Mill handles 5-18 tph. Larger systems incorporating vertical mills can achieve capacities exceeding 300 tph for specific applications.
How does the MW Ultrafine Grinding Mill achieve higher efficiency compared to traditional mills?
The MW Mill incorporates several proprietary technologies including optimized grinding curves, advanced powder selection systems, and a unique chamber design without rolling bearings or screws. These innovations collectively enable 40% higher production than jet mills and twice the output of ball mills at similar power consumption.
What environmental considerations are addressed in modern grinding systems?
Contemporary grinding equipment integrates multiple environmental protection features. The MW Ultrafine Grinding Mill, for example, includes efficient pulse dust collectors that prevent dust pollution throughout operation, combined with silencers and noise elimination rooms that reduce acoustic emissions to comply with environmental standards.
How do maintenance requirements compare between different grinding technologies?
Maintenance demands vary by technology. The MW Ultrafine Grinding Mill’s design eliminates internal bearings and screws, reducing maintenance points. The LUM Ultrafine Vertical Grinding Mill features a reversible structure that allows easy roller access for maintenance. Both systems benefit from external lubrication that enables continuous operation without shutdowns for lubrication.
What fineness range can be achieved with advanced pebble grinding systems?
Modern ultrafine grinding systems can produce powders ranging from 325 to 2500 meshes. The MW Ultrafine Grinding Mill specifically offers adjustable fineness across this spectrum through its advanced cage-type powder selector system, which can achieve d97≤5μm in a single pass.
